   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis ICE Series 45A 2-6S Brushless Speed Control for Airplane/Helicopter Type FLY 45A-ICE SB
SKU:  ICE45A
Other Items of Interest
Browse HiModel

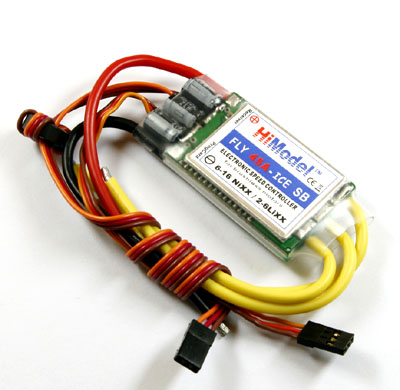

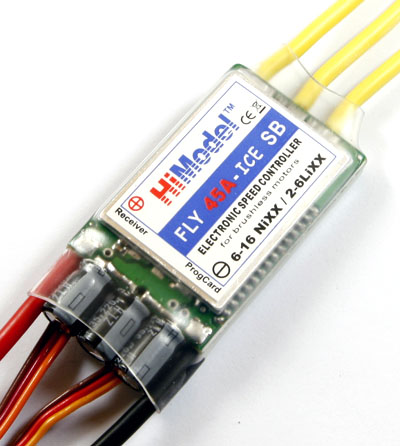

ICE Series 45A 2-6S Brushless Speed Control for Airplane/Helicopter Type FLY 45A-ICE SB
Customers rating.
Manual:
Add To Wish List
Added:2011/07/26
Updated:2013/06/14
Follow Us on:


  Tags: ICE  Series  45A  2-6S  Brushless  Speed  Control  for  Airplane  Helicopter  Type  FLY  45A-ICE  SB

Choose other components to build your saving combo:

Features:
* Compatible with a programming card to change and set parameters easily and conveniently
* Super fine and smooth touch of speed controlling, first-rate accurate linearity
* Soft Start-up mode and Constant RPM mode (Governor mode)
* adjustable F3A brake.
* 3 steps adjustable regular back EMF brake.
* High capability of anti-interference
* Low-voltage cut-off protection for per cell battery
* Under-voltage cutoff
* Under-voltage can be disabled
* Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
* Variable cutoff voltage / cell
* Slow down instead of cutoff
* Active freewheeling circuit
* LED status display
* Timing of motor ranges from 0° to 30°
* Blocked rotation protection
* Reversible rotation direction
* Over-temperature protection and Overload alarm
* Anti sparkling circuit: reduces connection sparkles
* Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off.
* Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected
***This series ESC can be compatible with both helicopter and airplane.***
Specifications:
Type: FLY 45A-ICE SB
Size: 65 x 32.8 x 13.2 mm (approx.)
Constant Current: 45A
Max Current: 55A for 10 seconds
Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd battery
BEC: yes, Switch BEC
BEC Output: 5.5V/6A
PWM: 8-16 KHz
Max RPM: 240,000rpm for 2 Poles Brushless Motor
Weight: 53g

* In the latest version, the cable for programe card and cable for throttle are combined into one, you can programe the ESC by connecting your programe card to the throttle cable.



Includes/Requires:
Includes:
1 x ESC

* battery and motor connectors are not included.
