* Compatible with a programming card to change and set parameters easily and conveniently * Super fine and smooth touch of speed controlling, first-rate accurate linearity * Soft Start-up mode and Constant RPM mode (Governor mode) * adjustable F3A brake. * 3 steps adjustable regular back EMF brake. * High capability of anti-interference * Low-voltage cut-off protection for per cell battery * Under-voltage cutoff * Under-voltage can be disabled * Under-voltage with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4 * Variable cutoff voltage / cell * Slow down instead of cutoff * Active freewheeling circuit * LED status display * Timing of motor ranges from 0° to 30° * Blocked rotation protection * Reversible rotation direction * Over-temperature protection and Overload alarm * Anti sparkling circuit: reduces connection sparkles * Throttle signal lose protection. When the signal loses for 3 seconds, the power will automatically cut off. * Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected ***This series ESC can be compatible with both helicopter and airplane.***

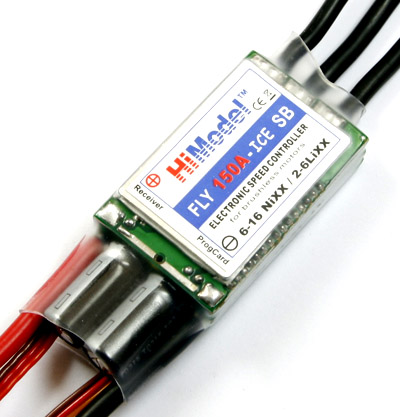

Type: FLY 150A-ICE SB Size: 74 x 32.5 x 18 mm Constant Current: 150A Max Current: 170A for 10 seconds Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd battery BEC: yes, Switch BEC BEC Output: 5.5V/6A PWM: 8-16 KHz Max RPM: 240,000rpm for 2 Poles Brushless Motor Weight: 93g

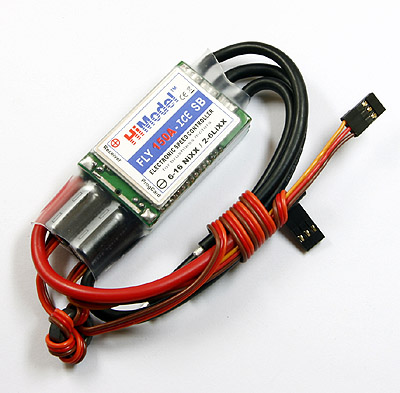

* In the latest version, the cable for programe card and cable for throttle are combined into one, you can programe the ESC by connecting your programe card to the throttle cable.
Includes: 1 x ESC
* battery and motor connectors are not included.
