   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing XRotor Micro 40A 4in1 BLHeli-S DShot600
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  XRT40A4IN1
Browse HOBBYWING
Hobbywing XRotor Micro 40A 4in1 BLHeli-S DShot600
Customers rating.
Add To Wish List
Added:2017/07/26
Updated:2017/07/26

Follow Us on:


  Tags: Hobbywing XRotor Micro 40A 4in1 BLHeli-S DShot600

  Features:

  Specifications:

Hobbywing XRotor Micro 40A 4in1 BLHeli-S DShot600

Specifications

Product Name



XRotor Micro 40A 4in1 BLHeli-S DShot600

Product Number



30901076

Specifications

Cont./Peak Current

40Ax4/50Ax4

 Input Voltage

2-5S Lipo

BEC output

5V & 1.5A

Wires & Connectors

Input Wires

Red-14AWG-130mm / Black-14AWG-130mm

Output Wires

No wires but solder tabs

Input Connectors

XT60 (w/ Wires Soldered on)

Output Connectors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

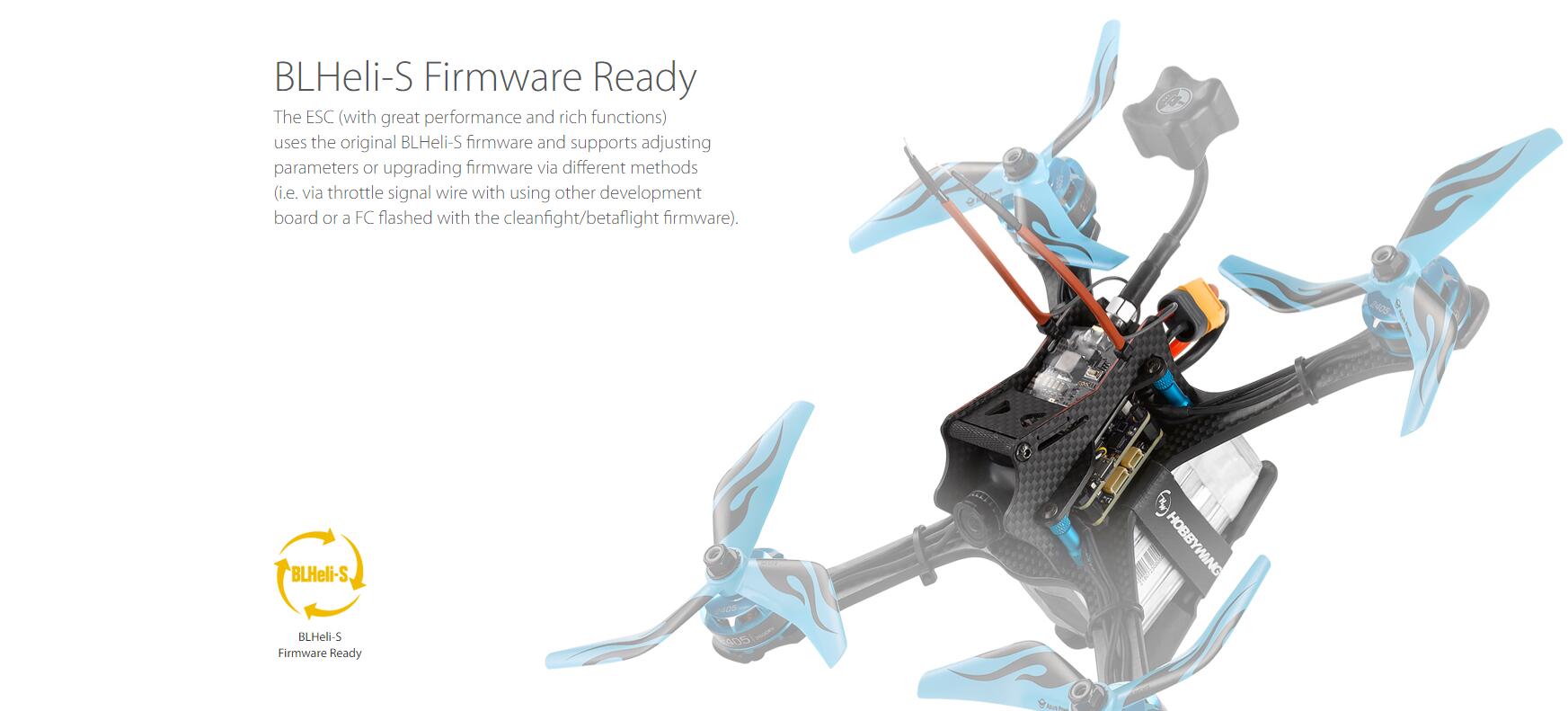

Firmware

BLHeli-S A-H-50 16.5

ESC Programming

Stick Programming, BLHeliSuite

Stick Programming

Supported

DEO

Supported

Throttle Range Calibration

Supported

Oneshot125 Mode

Supported

Oneshot42 Mode

Supported

MultiShot Mode

Supported

DShot150/300/600

Supported

Timing

Supported

Motor Rotation

Supported

Size & Weight

Size

42.6x36x4mm

Weight

10g

Applications



130-280mm FPVs


  Includes/Requires:

Includes:
1 x ESC
