Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing Platinum Series 50A 2-6S High Performance ESC Platinum-50A-V3 (Professional)
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  PLT50AV3
Browse HOBBYWING

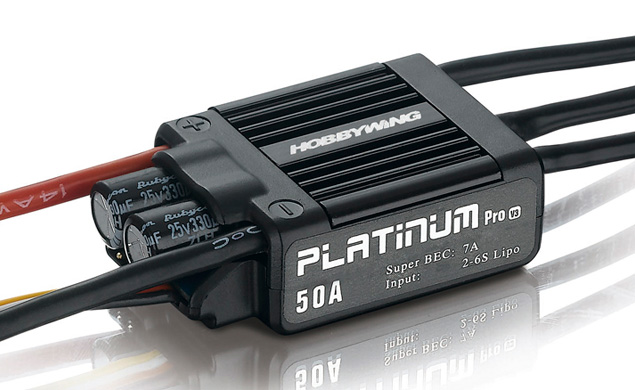

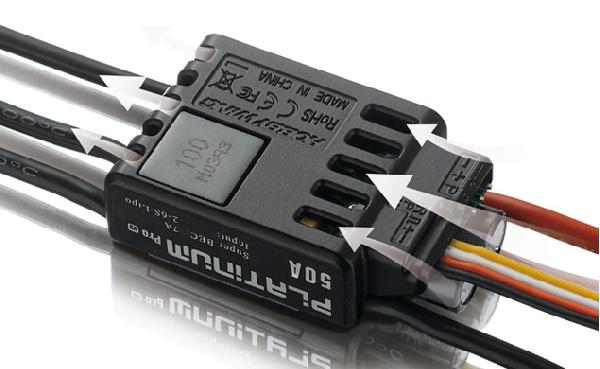

Hobbywing Platinum Series 50A 2-6S High Performance ESC Platinum-50A-V3 (Professional)
Customers rating.
Manual:
Add To Wish List
Added:2014/03/10
Updated:2014/03/10
Follow Us on:


  Tags: Hobbywing  Platinum  Series  50A  2-6S  High  Performance  ESC  Platinum-50A-V3  Professional

Features:

Features

1.1 High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market) and high driving efficiency.
1.2 The maximum motor speed can reach 210000 RPM (for 2-poles), 70000 RPM (for 6-poles) and 35000 RPM (for 12-poles).
1.3 Multiple flight modes: Fixed Wing Airplane/ Heli with Governor Off/ Heli with Governor (Elf) / Heli with Governor Store.
1.4 Adjustable throttle range, compatible with various transmitters. It brings smooth, soft & linear speed adjustment and rapid throttle response.
1.5 Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control.
1.6 Built-in high-efficient & high-power (switch mode) BEC can make the output voltage switched among 5.2V / 6.0V / 7.4V / 8.4V. (*For the specific output voltage, please refer to the parameter list below.)
1.7 Brand new governor program, easy to operate; and its excellent speed-governing effect can make big rotor blades more stable even under rapid load change.
1.8 ”Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.
1.9 Independent output port for RPM (that is: motor speed) signals.
1.10 Compatible LCD program box (*optional accessory), its simple and visual interface allows users to set/revise all the ESC parameters easily. (For detailed information, please refer to User Manual of LCD Program Box.)
1.11 Upgradeable firmware, you can upgrade the ESC after connected it to a PC via the USB cable on the program box.
1.12 The independent port, for connecting the program box and setting parameters, can also be the output port of the running status data of the ESC. When coordinating with the data transmission module, it can make the real-time data monitoring and logging possible.
1.13 Multiple protection features including input voltage abnormality protection/ low-voltage cutoff protection/ throttle signal loss protection effectively prolong the service life of the ESC.

Specifications:

Hobbywing Platinum Series 50A 2-6S High Performance ESC Platinum-50A-V3 (Professional)

Specification


Model

Platinum-100A-V3

Platinum-50A-V3

Main Application

480-550 class (helis)

450 & 450L class (helis)

Battery Count

2-6S Lipo5.2V-25.2V

2-6S Lipo5.2V-25.2V

Cont./Burst Current

100A/150A (burst in 10 sec)

50A/75A (burst in 10 sec)

BEC Output

Switch Mode BEC6.0V/7.4V/8.4V; Cont.: 10A, Burst: 25A
BEC
 has the cut-through protection (which means the battery voltage wont get through to the receiver if the BEC is accidentally damaged)

Switch Mode BEC,5.2V/6.0V/7.4V
Cont.: 7A, Burst: 15A

Input/Output Wire

Input: 12AWG / Output:12AWG

Input: 14AWG / Output: 14AWG

Weight/Size

104g / 70mm*35mm*21mmW/O fan

110g / 70mm*35mm*32mmW/ fan

49g / 48mm*30mm*15.5mm





Includes/Requires:
Includes:
1 x ESC
