   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner Hobbywing Platinum 5220 220KV Airplane Brushless Motor
SKU:  PLT5220-22
Browse HOBBYWING

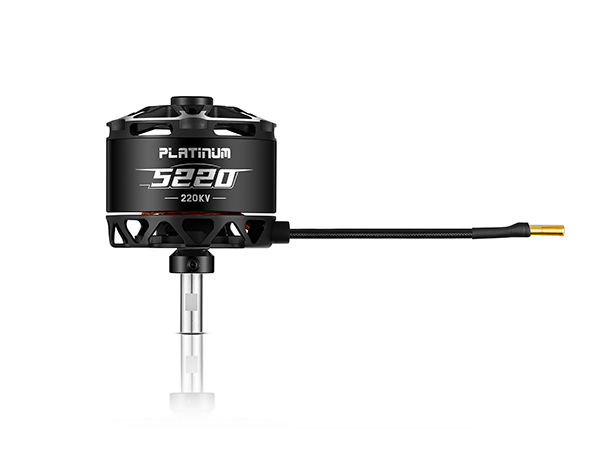

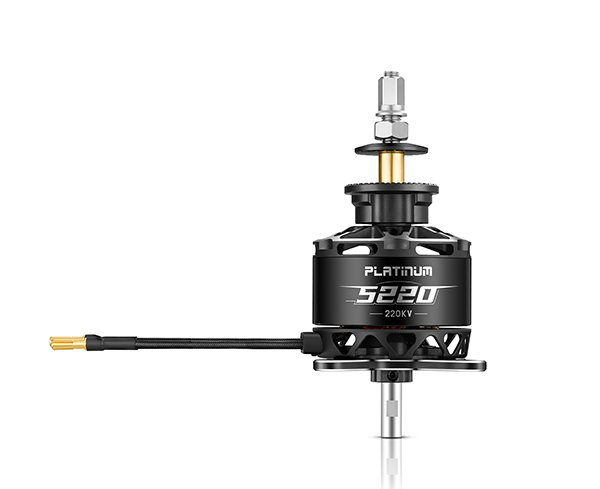

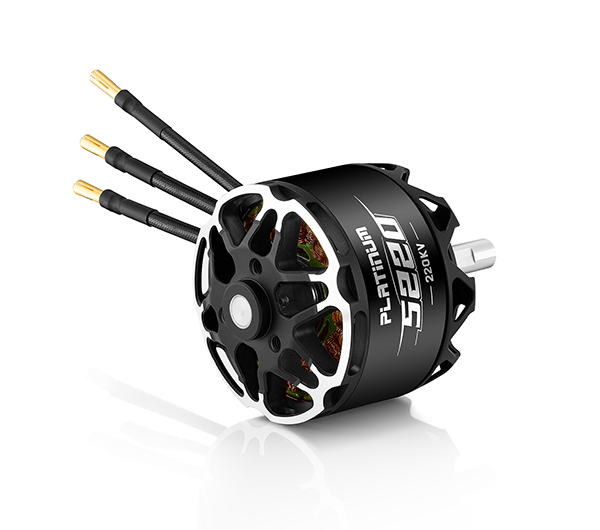

Hobbywing Platinum 5220 220KV Airplane Brushless Motor
Customers rating.
Add To Wish List
Added:2025/07/17
Updated:2025/07/17
Follow Us on:



  Tags: Hobbywing  Platinum  5220  220KV  Airplane  Brushless  Motor

Specifications:

Hobbywing Platinum 5220 220KV Airplane Brushless Motor


Specifications
Platinum 5230SL
380KV
ModelPlatinum 5220SL 220KVPlatinum 5220SL 380KVPlatinum 5230SL 190KVPlatinum 5230SL 220KVPlatinum 5230SL 380KV
Product Number3041615030416151304162003041620130416202
Motor SizeΦ60.2 *83.5mmΦ60.2 *83.5mmΦ60.2 *93.5mmΦ60.2 *93.5mmΦ60.2 *93.5mm
Stator SizeΦ51.7*20mmΦ51.7*20mmΦ51.7*30mmΦ51.7*30mmΦ51.7*30mm
Stator processHigh standard silicon steel sheet, 180℃ high temperature resistance paint-coatHigh standard silicon steel sheet, 180℃ high temperature resistance paint-coatHigh standard silicon steel sheet, 180℃ high temperature resistance paint-coatHigh standard silicon steel sheet, 180℃ high temperature resistance paint-coatHigh standard silicon steel sheet, 180℃ high temperature resistance paint-coat
Enamelled wire200℃200℃200℃200℃200℃
Motor mounting hole dimensionsΦ22mm-3*M4Φ22mm-3*M4Φ22mm-3*M4Φ22mm-3*M4Φ22mm-3*M4
Motor mounting hole dimensionsΦ30mm-4*M4;Φ44mm-4*M4Φ30mm-4*M4;Φ44mm-4*M4Φ30mm-4*M4;Φ44mm-4*M4Φ30mm-4*M4;Φ44mm-4*M4Φ30mm-4*M4;Φ44mm-4*M4
Slot& Pole24N28P24N28P24N28P24N28P24N28P
Dynamic balance≤10mg≤10mg≤10mg≤10mg≤10mg
Bearing1560ZZ，698ZZ1560ZZ，698ZZ1560ZZ，698ZZ1560ZZ，698ZZ1560ZZ，698ZZ
Motor axle diameter8mm8mm8mm8mm8mm
Isolation test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test500V AC high voltage resistance test
Specification
KV220380190220380
Battery(LiPo)10~12S LiPo6~8S LiPo10~12S LiPo10~12S LiPo6~8S LiPo
No-load current3.5A/44.4V3.7A/22.2V3.0A/44.4V3.7A/44.4V4.0A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）86A/44s136.3A/47s112.5A/42s122.3A/45s162A/1min22s
Max power3828W/44s4028W/47s4985W/42s5423W/45s4790W/1min22s
Max thrust10.05kg10.14kg14.99kg14.34kg11.49kg
Resistance27.5mΩ11.3mΩ22mΩ17.2mΩ7.8mΩ
Wire SizeEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire OutputEnamelled Wire Output
Wire length100mm100mm100mm100mm100mm
Weight（With wire）430g435g582g579g590g
Recommended Props/ESCs
Recommended ESCPLATINUM 130A V4
PLATINUM 180A V5		PLATINUM 120A V4 PLATINUM 150A V5PLATINUM 130A V4 PLATINUM 180A V5PLATINUM 130A V4 PLATINUM 180A V5PLATINUM 120A V4 PLATINUM 150A V5
Propeller10S：20x8E，20x10E 12S：17x8E，18x8E，18x10E6S：18x10E，19x10E，20x10E 8S：16x10E，17x10E，18x10E10S：20x10E，22x10E，22x12E 12S： 20x8E， 20x10E，22x10E10S：20x10E，22x10E 12S：18x10E，19x10E，20x10E6S：19x10E，20x10E，22x10E 8S：17x10E，18x10E，18x12E
Includes/Requires:
Includes:
1 x motor Hobbywing Platinum 5220 220KV

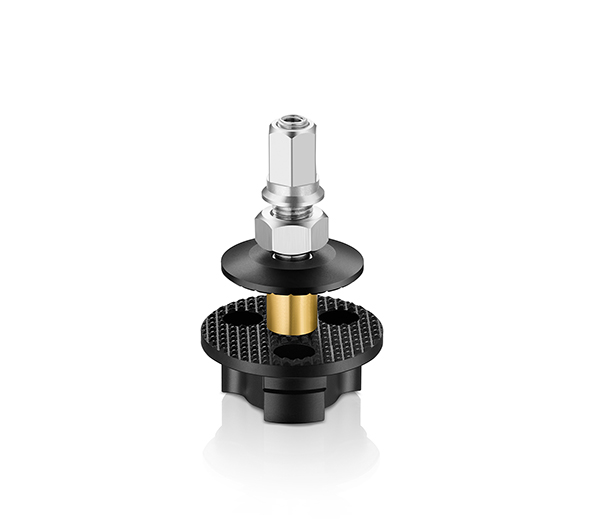

1 x accessory bag
