Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing FlyFun Series 130A-OPTO 6-14S Electric Speed Control ESC FlyFun-130A V5
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  FLP130A-V5
Other Items of Interest
Browse HOBBYWING

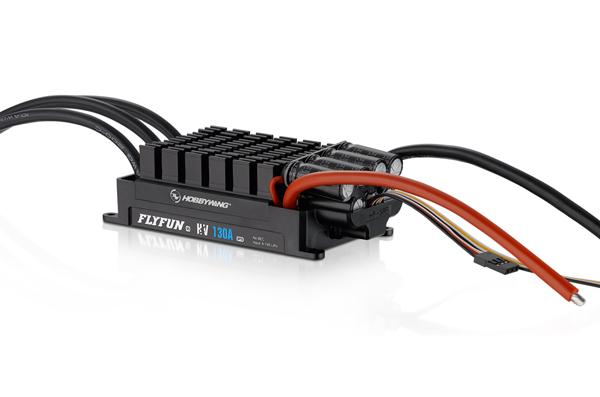

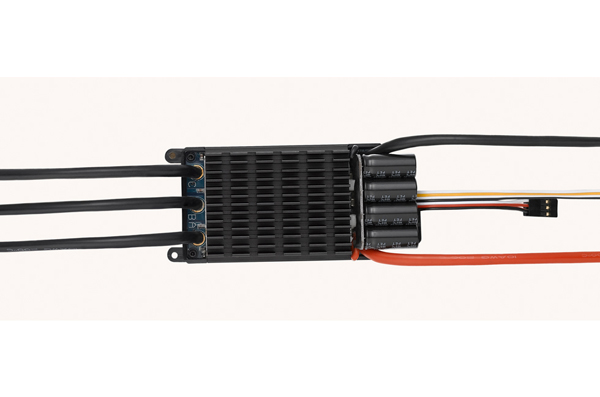

Hobbywing FlyFun Series 130A-OPTO 6-14S Electric Speed Control ESC FlyFun-130A V5
Customers rating.
Add To Wish List
Added:2017/04/01
Updated:2017/04/01
Follow Us on:


  Tags: Hobbywing FlyFun Series 130A-OPTO 6-14S Electric Speed Control ESC FlyFun-130A V5 Version 5

Features:

DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
● Rapider and smoother throttle response, better stability and flexibility during flight.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature, more reliable operation.

Soft Start-ups & Reverse Brake
New soft start-up modes are applicable to regular propeller aircraft and
EDF aircraft with different sizes. With Reverse Brake mode enabled when
landing can effectively shorten the sliding distance of the aircraft to
simulate the landing of a real aircraft (within a super short-distance).
Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode
are also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.

High-power BEC
High-power switch-mode BEC with continuous/peak current of
8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows
users to have more electronic devices or devices with higher power
like servo, flight controller, and on-board light on their aircraft.

Multiple Protections
Multiple protection features include start-up,
over-current, ESC thermal, capacitor thermal,
overload, throttle signal loss (or Fail Safe),
and abnormal input voltage effectively
prolongs the service life of the ESC.

New Design & Great performance
New design brings exquisite look and good heat-dissipating performance.
Imported components and the PCB (printed circuit board) with extremely
low impedance adopted by the ESC guarantee great current endurance,
excellent performance and high reliability. The ESC is available in
high-voltage/regular version with different Amps.

Multiple Programmable Parameters
Multiple programmable parameters for setups of different fixed-wing
aircraft are adjustable via transmitter or Hobbywing LED program box.

Specifications:


Hobbywing FlyFun Series 130A-OPTO 6-14S Electric Speed Control ESC FlyFun-130A V5


Specifications

Product Name

Product Number

Type



Specifications





Wires & Connectors







ESC Programing via











Firmware

Size & Weight







Brushed/Brushless

High Voltage/Regular

Cont./Peak Current

Input

BEC Output

Input Wires

Output Wires

Input Connectors

Output Connecotors

Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

Program Port

Firmware Upgrade

Size

Weight


FLYFUN 160A HV OPTO V5

30201650

BL

HV

160A/200A

6-14S LiPo

No

Red-10AWG-150mm*1
Black-10AWG-150mm*1

Black-10AWG-150mm*3

No

No

Supported

Not Supported

Supported

Not Supported

Not Supported

Separate Program Wire

Not Supported

110x50.3x33.3mm

221.5g

FLYFUN 130A HV OPTO V5

30201500

BL

HV

130A/160A

6-14S LiPo

No

Red-10AWG-150mm*1
Black-10AWG-150mm*1

Black-10AWG-150mm*3

No

No

Supported

Not Supported

Supported

Not Supported

Not Supported

Separate Program Wire

Not Supported

110x50.3x33.2mm

221.5g

FLYFUN 120A V5

30201400

BL

Regular

120A/150A

3-6S LiPo

Switch Mode: 5.2V/6V/7.4V, 8A/20A

Red-12AWG-150mm*1
Black-12AWG-150mm*1

Black-12AWG-150mm*3

No

4.0 Gold Connectors (Female)

<div class="csright-linr"
Includes/Requires:
Includes:
1 x ESC
