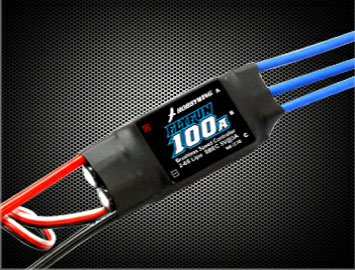

Hobbywing FlyFun Series 100A 2-6S Speed Control for Airplane/Helicopter FlyFun-100A
Customers rating.
Manual:
Add To Wish List
Added:2012/06/04
Updated:2013/02/27
Follow Us on:


  Tags: Hobbywing  FlyFun  Series  100A  2-6S  Speed  Control  for  Airplane  Helicopter  FlyFun-100A

Features:
Features

1 Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2 Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
3 User programmable.
4 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
5 Compatible with Lipo battery and NiCd/NiMH battery.
6 Internal timing can be changed to be suitable for different brushless motors.
7 Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
8 Extreme low resistance PCB is used at the power output section, the whole ESC has super current endurance capability.
9 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability
Specifications:
Specification

1 Output: Continuous 100A, Burst 120A up to 10 seconds.
2 Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NiMh battery.
3 BEC:
FlyFun-100A: 3A / 5V switching mode BEC.

4 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
5 Size:
FlyFun-100A: 83mm*31mm*16mm.

6 Weight:
FlyFun-100A: 76.2g.
Includes/Requires:
Includes:
1 x ESC
