   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing 80A 2-6S Electric Speed Control ESC Pentium-80A-OPTO
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  P80OPTO
Browse HOBBYWING

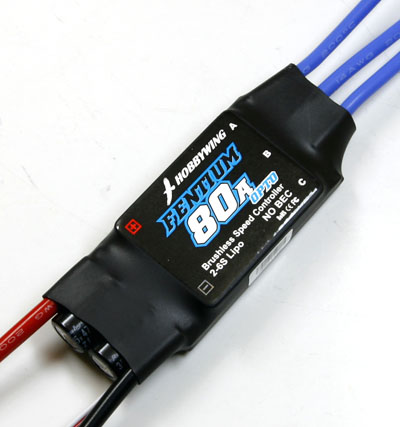

Hobbywing 80A 2-6S Electric Speed Control ESC Pentium-80A-OPTO
Customers rating.
Add To Wish List
Added:2015/04/24
Updated:2015/04/24
Follow Us on:


  Tags: Hobbywing 80A 2-6S Electric Speed Control ESC Pentium-80A-OPTO

Specifications:

Hobbywing 80A 2-6S Electric Speed Control ESC Pentium-80A-OPTO
Specification

1 Output:  Continuous 80A, Burst 100A up to 10 seconds.
2 Input Voltage:  2-6 cells lithium battery or 5-18 cells NiCd/NiMh battery.
3 BEC:  No
4 Refresh rate of the throttle signal: 50Hz to 432Hz.
5 Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
      (BLM = BrushLess Motor)
6 Size: 70mm*31mm*14mm.
7 Weight: 58g.

Includes/Requires:
Includes:
1 x ESC
