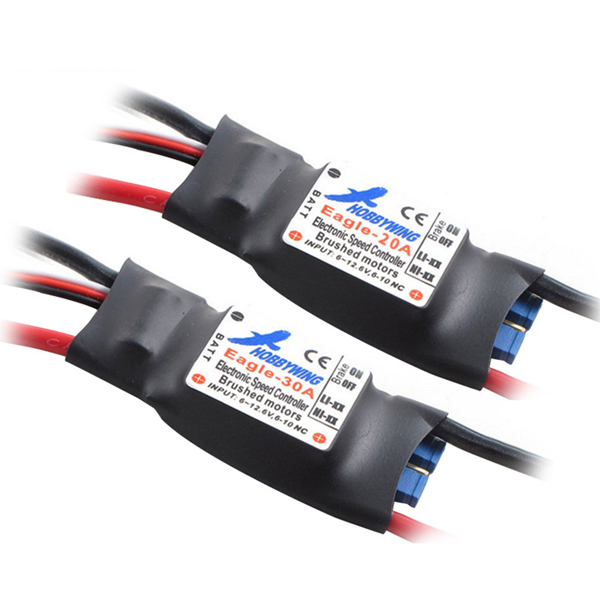

Hobbywing 20A Brushed Speed Controller Eagle-20A
Customers rating.
Manual:
Add To Wish List
Added:2011/06/24
Updated:2020/11/25
Follow Us on:

Click for more images

  Tags: brushed ESC  hobbywing

Features:
2.1Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Brake Settings: The brake function can be enabled or disabled by a jumper.
2.3 Battery Type: The battery type can be chosen by a jumper.
2.4 Low Voltage Protection Threshold: For lithium batteries, the threshold for each cell is 3.0V. When the battery's voltage is less then the threshold, the ESC will gradually reduce the output power to prevent the battery from over discharging.
2.5 Over-heat protection: When the temperature of the ESC is over 110 Celsius degree, the ESC will gradually reduce the output power.
2.6 Throttle signal loss protection: The ESC will gradually reduce the output power if the throttle signal is lost for 1 second, further loss for 2 seconds will cause its output to be completely cut-off.

3 Advantages

3.1 The ESC is controlled by advanced microprocessor.
3.2 Compatible with lithium battery and nickel battery.
3.3 Multiple protection features:
Low-voltage cut-off protection
Over-heat protection
Throttle signal loss protection.
3.4 Smooth, linear and precise throttle response.
3.5 The brake function can be enabled or disabled by a jumper.
Specifications:
1.1 Output: Continuous 20A, Burst 25A up to 10 Secs.
1.2 Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NIMh battery.
1.3 BEC: 1A / 5V (Linear mode).
1.4 PWM Frequency: 2 kHz.
1.5 Size: 45mm (L) * 21mm (W) * 8mm (H).
1.6 Weight: 17g.
Includes/Requires:
Includes:

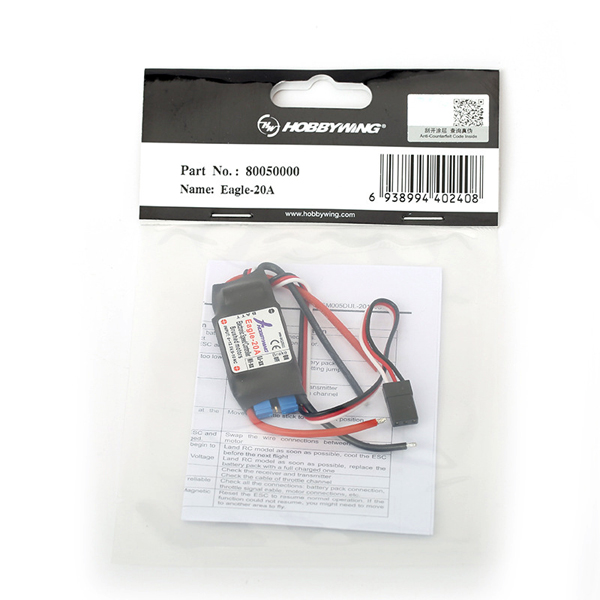

1 x ESC Eagle-20A
