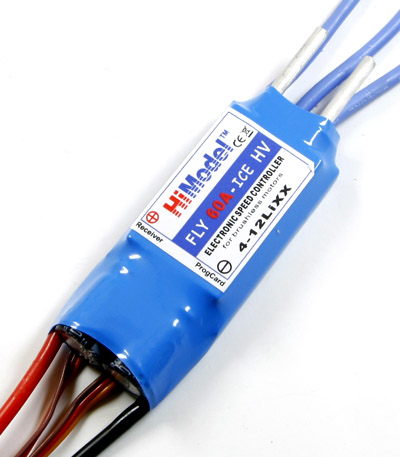

HiModel ICE 60A 4-12S Water-cooled Brushless Navy ESC ICE-60A-HV
Customers rating.
Manual:
Add To Wish List
Added:2011/08/06
Updated:2012/02/13

Follow Us on:



  Tags: ICE  water-cooling  water-cooled  Navy ESC  boat ESC

  Specifications:
HiModel ICE Series Boat ESC W/Water cooling
Model Continuous Current（A） Cell Number (Lipo) BEC Mode BEC Output PCB Dimension (L*W) Connector Wire Length（MM）/Gauge Signal Wire Length（MM）
60A
60A
 2—6
Switch
5.5V/6A
 50MM*30MM
NO
 120 14#
300
80A
80A
 2—6
Switch
5.5V/6A
 50MM*30MM
NO
 120 14#
300
100A
100A
 2—6
Switch
5.5V/6A
 50MM*30MM
NO
 120 12#
300
150A
150A
 2—6
Switch
5.5V/6A
 50MM*30MM
NO
 120 10#
300
60A-HV
60A
 4—12
NO
NO
 50MM*30MM
NO
 120 14#
300
100A-HV
100A
 4—12
NO
NO
 50MM*30MM
NO
 120 12#
300
120A-HV
120A
 4—14
NO
NO
 68MM*53MM
NO
 120 10#
300
180A-HV
160A
 4—14
NO
NO
 68MM*53MM
NO
 120 10#
300
  Includes/Requires:
Includes:
1 x ESC
