Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING XRotor 10A Speed Control for Multicopters XRotor-10A
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  XRT10W
Browse HOBBYWING

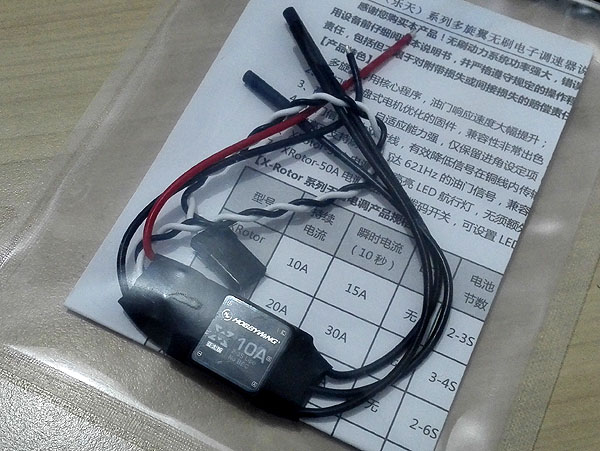

HOBBYWING XRotor 10A Speed Control for Multicopters XRotor-10A
Customers rating.
Manual:
Add To Wish List
Added:2015/01/15
Updated:2018/04/27
Follow Us on:


  Tags: HOBBYWING XRotor Speed Control for Multicopters X-Rotor

Features:
 Features
1 Special core program for multi-rotor controllers greatly improves throttle response.
2 Specially optimized software for excellent compatibility with disc-type motors.
3 All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
4 The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
5 Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
6 Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.

7 MOSFET with extra-low resistance brings high performance and great current endurance.

Specifications:

HOBBYWING XRotor 10A Speed Control for Multicopters XRotor-10A


Specifications
Model

Con.
Current

Peak Current
(10s)

BEC LiPo Programmable Item Weight Size

Typical Applications*
(For reference)

XRotor-10A 10A 15A No 2-3S

Timing
(High/Intermediate)

6.5g 36.5 x 16.4 x 4.1 250 Class Quadcopter
XRotor-20A 20A 30A No 3-4S Timing
(High/Intermediate)
14g 52.4 x 21.5 x 7

330/450 Class
Quadcopter

XRotor-40A 40A 60A No 2-6S Timing
(High/Intermediate)
26g 68 x 25 x 8.7

550/650 Class
Quadcopter

XRotor-50A 50A 70A No 2-6S

Timing
(High/Intermediate)

LED (On/Off)

LED Color (Red/Green)

Motor Rotation
(CW/CCW)

46g 48 x 30 x 15.5

Over 650 Class
Quadcopter

Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.



Compatibility Test

Compatibility Test Result of Motors and XRotor ESC
Motor Brand

Motor Model

KV

Test Conditions Compatibility Test
Result
Propeller Voltage
HLY
(HengLiYuan)
4822 690 1238/1340 4S Lipo Passed
390 1238/1240 6S Lipo Passed
4225 610 1238 4S Lipo Passed
390 1238/1447 6S Lipo Passed
SunnySky V3508 580 APC1238 4S Lipo Passed
X4112S 400 1447/1550 4-6S Lipo Passed
485 1447/1550 4-6S Lipo Passed
X4108S 380 1447/1550 4-6S Lipo Passed
480 1447/1550 4-6S Lipo Passed
600 1447/1550 4S Lipo Passed
X2212 980 1047 3S Lipo Passed
V2216 900 1047 3S Lipo Passed
X4110S 400 1238/1550 4-6S Lipo Passed
Crazy Motor 5008 335 1555/1655 6S Lipo Passed
Feiyue 5008 340 17-18 inch 6S Lipo Passed
DualSky XM5015 390 1550 6S Lipo Passed
XM5010 700 1450 3S Lipo Passed
4010 880 1150 3S Lipo Passed
T-Motor 3506 650 1238/1340 3S Lipo Passed
3510 430 1340/1550 6S Lipo Passed
4014 330 1550 6S Lipo Passed
3508 380 1340/1550 6S Lpo Passed
......
Includes/Requires:
Includes:
1 x XRotor ESC
