Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING Platinum-40A V4 3-6S Speed Control
SKU:  PLT40A-V4
Browse HOBBYWING

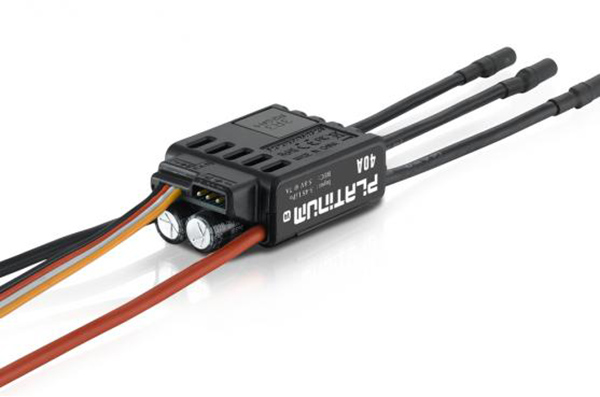

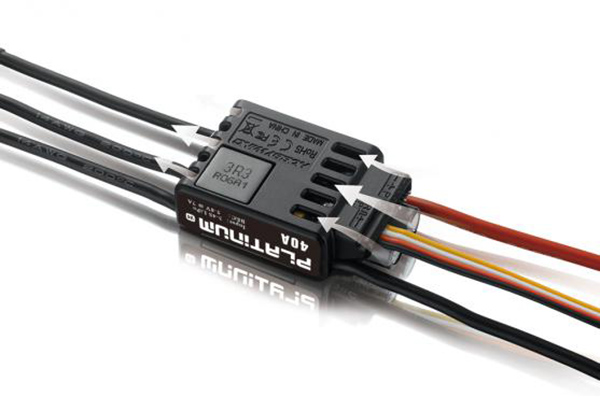

HOBBYWING Platinum-40A V4 3-6S Speed Control
Customers rating.
Add To Wish List
Added:2017/09/10
Updated:2017/09/10
Follow Us on:


  Tags: Hobbywing  Electric speed controller  ESC  Platinum Serires V4

Features:

Excellent Motor Governing Speed

High-performance 32-bit processor with a running frequency of 72MHz
combined with advanced algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot a precise control experience

High Voltage Built-in BEC
The built-in switch mode BEC with an adjustable voltage (6V/7.4V for the Platinum
25A V4, 5V~8V with the step of 0.1V for the Platinum 40A V4), a continuous current
of over 3A/7A (3A for the Platinum 25A V4, 7A for the Platinum 40A V4) and a peak
current of 7A/18A (7A for the Platinum 25A V4, 18A for the Platinum 40A V4) can
supply enough power for your servos to operate efficiently.

DEO Technology
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling")
technology implemented in the ESC has multiple advantages.
● Quicker response to the throttle change.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.

Reverse Brake
With the Reverse Brake mode enabled when landing can effectively
shorten the sliding distance of the fixed-wing aircraft to simulate the
landing of a real aircraft (within a super short distance). The Normal
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.

Multiple Protections
Multiple protection features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle signal loss
(or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.

Other Features

A separate programming port for connecting the programmer on this ESC allows user to
● Program ESC,
● check flight data include minimum voltage, maximum temperature, standardized RPM
and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program box or a Wi-Fi Module & our
Apple/Android phone App.
Specifications:

HOBBYWING Platinum-40A V4 3-6S Speed Control

Specifications

Product Name



Platinum 25A V4

Platinum 40A V4

Product Number



30204200

30215001

Type

Brushed/Brushless

BL

BL

High Voltage/Regular

Regular

Regular

Specifications

Cont./Peak Current

25A/40A

40A/60A

Input

3-6S Lipo

3-4S Lipo

BEC Output

Switch Mode:6V/7.4V,3A

Switch Mode:5-8V,7A

Wires & Connectors

Input Wires

Red-16AWG-100mm*1/Black-16AWG-100mm*1

Red-14AWG-100mm*1/Black-14AWG-100mm*1

Output Wires

Black-18AWG-100mm*3

Black-16AWG-75mm*3

Input Connectors

No

No

Output Connecotors

3.5mmGold Connectors (Female)

3.5mmGold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Not Supported

Not Supported

LED Program Card

Not Supported

Not Supported

LED Program Box

Not Supported

Not Supported

LCD Program Box

Supported

Supported

WiFi Module

Supported

Supported

Program Port

Separate Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Supported

Size & Weight

Size

47x22x10mm

48x30x15mm

Weight

27g

47g



Includes/Requires:
Includes:
1 x ESC
