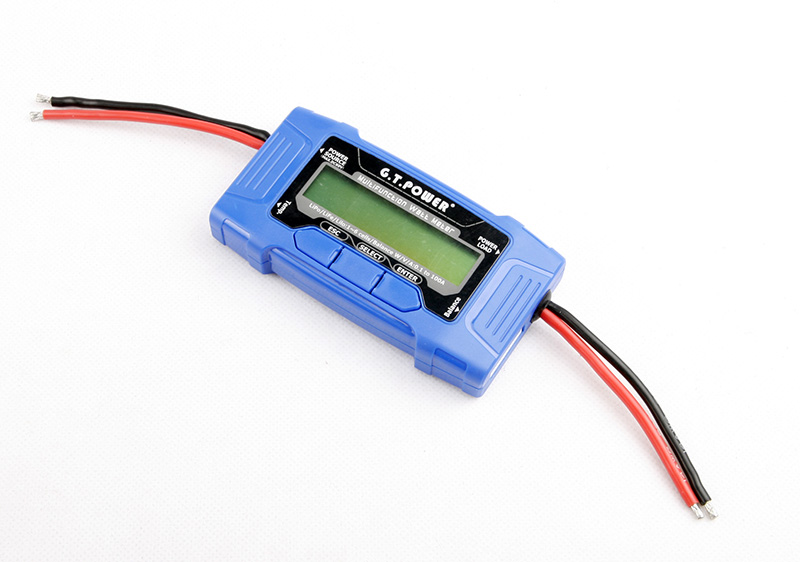

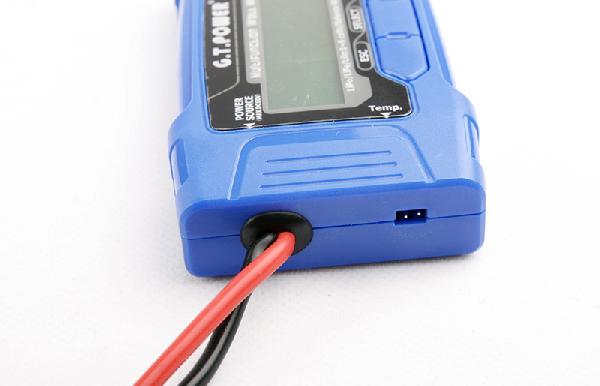

GT Power 100A watt-meter/battery checker/self-balancer
Customers rating.
Add To Wish List
Added:2009/09/18
Updated:2018/06/26
Follow Us on:


  Tags: GT Power Rc  watt meter  power analyzer  battery checker  battery balancer

Features:
This is a very sophisticated electronic device that controlled by high performance microprocessor and precise resistors. It has three function of Watt-meter, battery checker and self-balancer. Those functions are essential for electric flyers to ensure safe battery condition and to measure the electric consumptions of the power system. And also, the built-in self-balancer can equalize the individual voltages instantly.
It can handle all types of Lithium batteries (Lipo, Lilo, LiFe) consisting of series-wired cells, but the battery pack has to have a balancing plug for checking voltage.
* Watt-meter program
The watt-meter circuit can measure the electric current up to 100A. you can verify the electric consumptions on your power system.
* Battery checker
It can show you the voltage and residual capacity of your Lithium battery pack with its individual voltage of each cells.

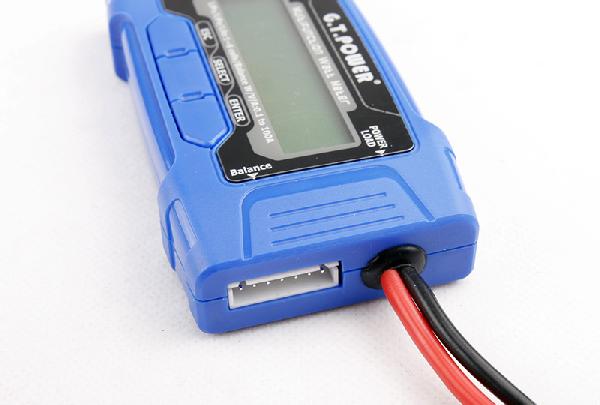

* Integrated self-balancer
It has an integrated self-balancing circuit which is self-operative without linking to charger. When you connect the battery pack to the individual port of the device the balancing job will be started instantly. In this case the individual cell voltage will be equalized to the lowest cell voltage of the battery pack.
Specifications:

GT Power 100A watt-meter/battery checker/self-balancer

●Input power: Max 60V (both on watt-meter and battery checker)
●Max. current: 100A (watt-meter)
●Min operating voltage: 6.6V
●Current consumption: 20mA at battery checker program
● Dimension: 105 x 53 x 20 mm
● Weight: 120g
Includes/Requires:
Includes:
1 x multi-function device
1 x instruction manual
