Functions
1. Simple servo test (three modes)
2. Servo end point test
3. Servo speed test
4. Servo dead band test
5. Servo torque test (requires torque sensor, available separately, and not released now)
6. Tachometer function (measures rotational speed of propellers)
7. PWM signal width test (measures receiver channel signals)
8. Lithium battery power test (1‐8 cells)

Features of STV3

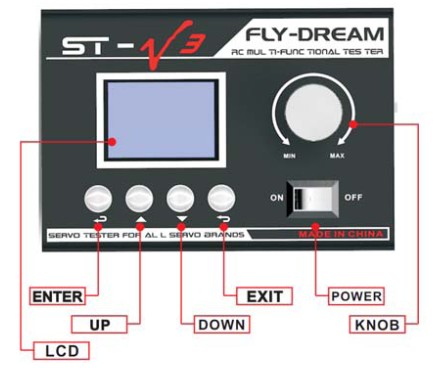

1. Dot matrix LCD (84*48) provides rich, clear display
2. Powered by built‐in 5A UBEC via Lipo battery or 8V‐18V DC supply power
3. Provides choice of three output voltages to servo: 4.8v, 6.0v and 7.4V
4. Intelligent programming ensures compatibility with both analog and digital servos
5. Thermometer sensor measures temperature during servo testing.
6. Factory Mode enables test programs customized to the needs of manufacturers

Specifications
Size: 100*72*36mm
Net Weight: 180g
Gross Weight: 248g
Operating Voltage Range: 8V‐18V
Output Voltage:4.8V/6.0V/7.4V
Quiescent Current :< 20mA
Resolution: 1us

Includes:
1 x multi-function servo tester
