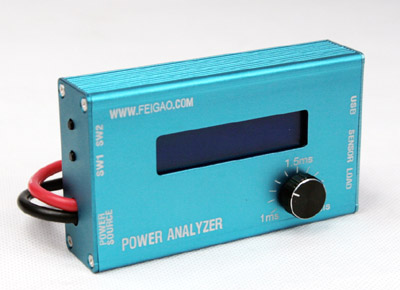

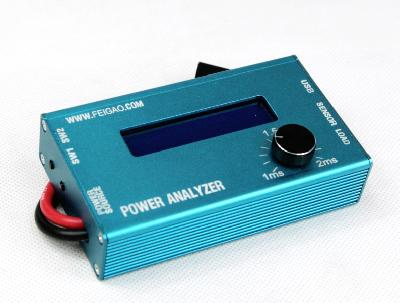

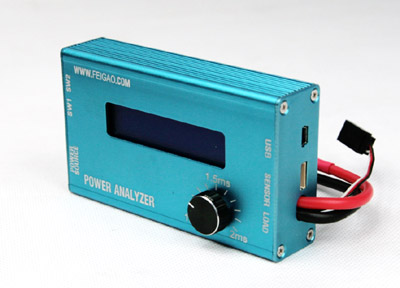

Feigao Power Analyzer Version 3
Customers rating.
Manual:
Add To Wish List
Added:2008/11/05
Updated:2009/09/23
Follow Us on:

Click for more images

  Tags: Feigao  Power Analyzer  Version 3  V3

Features:
This is the Feigao Power Analyzer Version 3, with accuracy and stability improved compare to the first version.

BASIC CHARACTERISTIC:
1. Following shows the 9 parameters for basic characteristics of products.
Voltage measuring DC0-100V (0-60V recommended for high accuracy)
Current measuring 0-200Amps (0-100Ampes recommended for high accuracy)
Torque 0-6000g/cm
Tachometer: 1000RPM-100000RPM
Amp-hours 0-999.9AH
Watt-hours 0-9999.9WH
Power 0-9999Watts
Delivery efficiency 0%-99.99%
Output signals Simulate PPM. 1-2ms
2. Automatically adjustment, adjustment procedure unnecessary.
3. Automatically exchanged between high & low current.
4.Directly attach USB to PC or other controller products.
5. PC supported PowerView software, including monitoring & drawing function
6. Output signals Simulate PPM.
Specifications:
Size: 114x66x27mm
Weight: 224g /7.89oz

Includes/Requires:

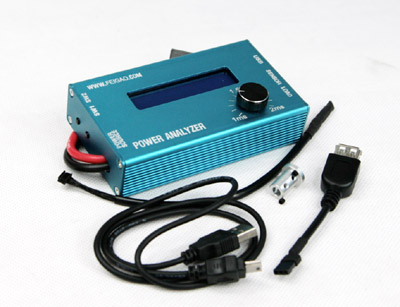

Includes:
1 x power analyzer
1 x Temperature sensor
1 x USB cable
1 x USB to JR connector adaptor cable
1 x RPM test part
1 x software disk (the software can also be downloaded here.

(* The device must connect to computer when using.)
Comments:
HiModel hint:
When install the software, when the computer prompts to install driver, you must specify the directory to "FT232R" where to find the driver, otherwise the computer will not able to locate the driver file.

23 Sep, 2009
