   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis FLY PRO Series 40A 2-6S, 5A BEC Brushless Speed Control Type FLY-40A-PRO
SKU:  FLY40PRO
Other Items of Interest
Browse HiModel

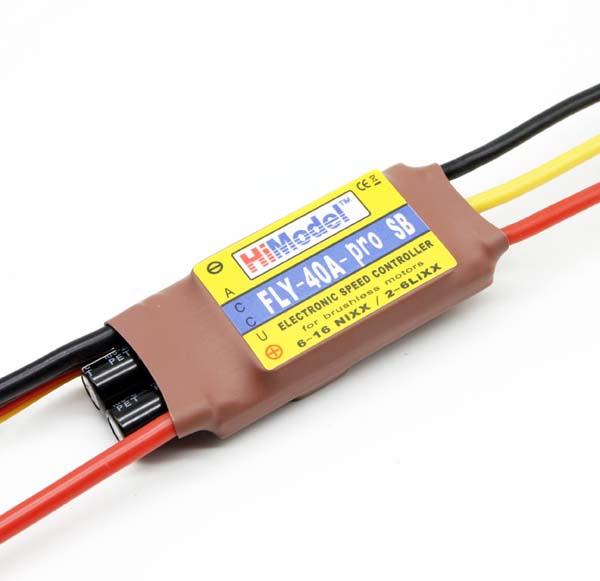

FLY PRO Series 40A 2-6S, 5A BEC Brushless Speed Control Type FLY-40A-PRO
Customers rating.
Manual:
Add To Wish List
Added:2010/07/30
Updated:2011/01/14

Follow Us on:


  Tags: FLY  PRO  Series  40A  2-6S  5A  BEC  Brushless  Speed  Control  Type  FLY-40A-PRO

  Features:

● Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
● Separate voltage regulator IC for MCU(Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
● Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
● It can be compatible with a programming card(optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manaul for programming card).
● Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
● All the ESCs of the series can be attached to battery of Li-XX or Fe. The protection voltage becomes more accurate.
● Automatically adjustment of Timing recommended for outrunner and inrunner motors.
● Direction of motor rotation can be changed by transmitter or programming card.
● BEC has adopted the most advanced designing of Switch mode mastered by the main-controlling chip, combining of FET of extremely low resistor against high frequency, current limit protection, high efficiency of chip up to 93%, which can meet the demand of digital servo of high torque or simulating servo fully.
  Specifications:

· Weight:37 g / 1.27 oz
· Size:54 x26 x10 mm
· Constant Current:40A
· BEC: Switch mode 5.5V/ 5A
· PWM: 8 KHz
· Input: 2 to 6 Li-Po/ 6-16 NiCd/NiMh


  Includes/Requires:

Includes:
1 x ESC
