   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars Ezrun-WP-80A Splash Proof Speed Controller for 1/10, 1/12 Scale
SKU:  WP-80A
Browse HOBBYWING

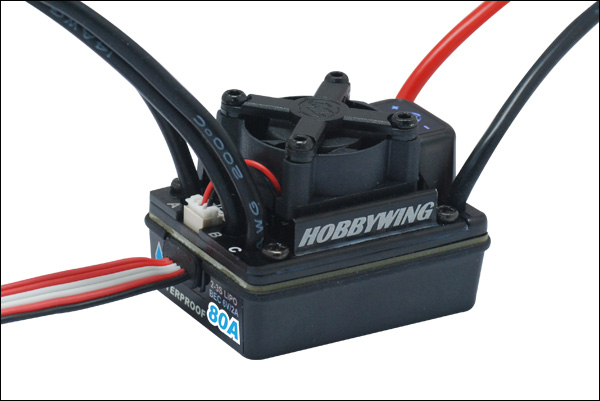

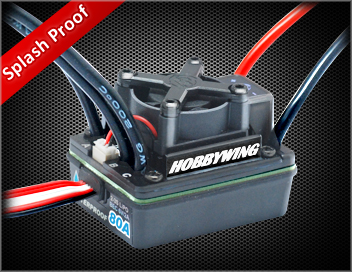

Ezrun-WP-80A Splash Proof Speed Controller for 1/10, 1/12 Scale
Customers rating.
Add To Wish List
Added:2013/07/08
Updated:2013/07/08

Follow Us on:


  Tags: Splash proofing  water proofing

  Features:

  Features

1   Splash-proof and dust-proof. The ESC can work on the tracks with small amount of water.
2   Compatible with sensorless brushless motors.
3   High quality components, big current endurance.

4   Excellent start-up, acceleration and linearity features.
5   Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
6   Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
7   Internal timing can be changed easily to make the ESC suitable for various of motors.

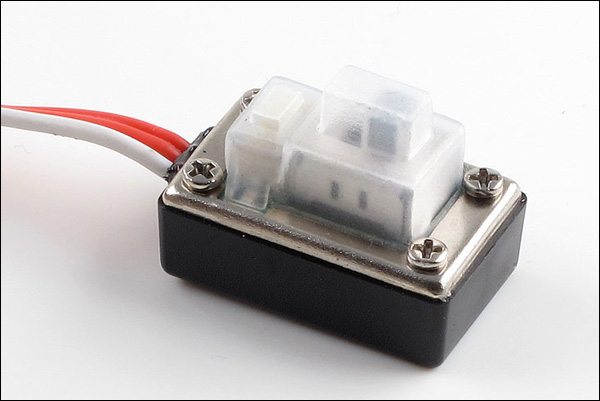

8   Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
9   ESC firmware can be updated through the USB adapter in the LCD Program Box.

Application:
1. EZRUN-WP80A:  1/10 scale on-road / buggy / truggy / SCT / monster all-weather sport.
2. EZRUN-WP60A: 1/10 scale on-road / buggy all-weather sport.

  Specifications:

Specification

1.1 Output:
       EZRUN-WP80A: Continuous 80A, burst 540A.
       EZRUN-WP60A: Continuous 60A, burst 390A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
1.3 BEC: 6V/2A (Linear mode built-in BEC).
1.4 Resistance:
       EZRUN-WP80A: 0.0004 Ohm.
       EZRUN-WP60A: 0.0007 Ohm.
1.5 Motor Supported: Sensorless Brushless Motor.
1.6 Suitable Motor:  * Note #1
       EZRUN-WP80A:
        With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road/Off-road≥5.5T, SCT/Monster KV≤6000;
        With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road/Off-road≥8.5T, SCT/Monster KV≤4000;

       EZRUN-WP60A:
        With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥5.5T, Off-Road≥9T;
        With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥8.5T, Off-Road≥13T;
1.7 Suitable Car:
       EZRUN-WP80A: 1/10 on-road/buggy/truggy/SCT/monster all-weather sport racings.
       EZRUN-WP60A: 1/10 on-road/buggy all-weather sport racings
1.8 Size: 46mm(L) * 34mm(W) * 35mm(H).
1.9 Weight:
       EZRUN-WP80A: 82g (With wires).
       EZRUN-WP60A: 75g (With wires).

* Note #1: These listed T numbers are available for 3650 sized brushless motor (Ø=36, L=50)

(* The programmable items and the default settings maybe changed in different firmware versions without prior notification.)



  Includes/Requires:

Includes:
1 x ESC EZRUN-WP-80A
