EdgeRacing Lite 2205 2480KV Competition/ Racing Class Brushless Motor CW

Stator Diameter			22mm
Stator Thickness			5mm
No.of Stator Arms			12
No.of Stator Poles			14
Motor Kv			2480
NO-Load Current(A/10V)			1.2
Motor Resistance			39mΩ
Max Continuous Current			30A/10S
Max Continuous Power			440W
Weight			28g

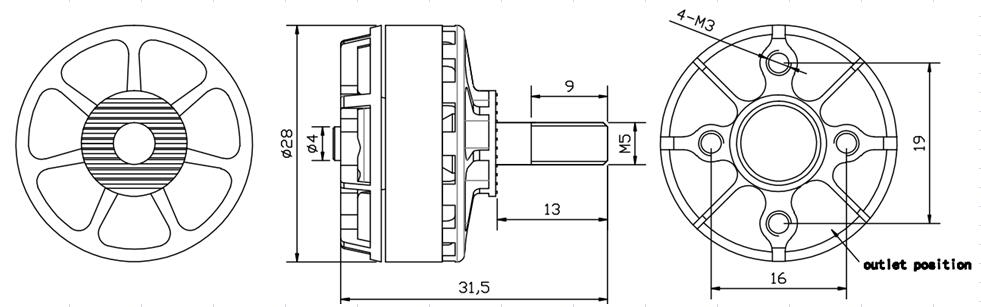

Outside Diameter			28mm
Shaft Diameter			5mm
Body Length			18.5mm
Overall Shaft Length			31.5mm
Max Lipo Cell			2-4S
ESC			30A-40A
Recommend Prop(inch)			5x3 / 5 x 4/ 5x4.5

Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	Full throttle Temperature (environment temp. 20℃）
(inch)	(V)	(A)	Thrust(g)	Watts (W)	g/W	Full throttle Temperature (environment temp. 20℃）
HQ5*3	11.1	1.6	100	17.76	5.630630631
		2.6	150	28.86	5.197505198
		3.7	200	41.07	4.869734599
		5	250	55.5	4.504504505
		6.1	300	67.71	4.430660168
		7.5	350	83.25	4.204204204
		8.8	400	97.68	4.095004095
		10.3	450	114.33	3.93597481
		11.2	480	124.32	3.861003861	40℃
	14.8	1.3	100	19.24	5.197505198
		2	150	29.6	5.067567568
		3	200	44.4	4.504504505
		4	250	59.2	4.222972973
		5	300	74	4.054054054
		6	350	88.8	3.941441441
		7.1	400	105.08	3.806623525
		8.3	450	122.84	3.663301856
		9.5	500	140.6	3.556187767
		10.8	550	159.84	3.440940941
		12.1	600	179.08	3.350457896
		13.4	650	198.32	3.277531263
		14.7	700	217.56	3.217503218
		16.3	750	241.24	3.108937158
		17.5	790	259	3.05019305	50℃
HQ5*4	11.1	1.7	100	18.87	5.299417064
		2.8	150	31.08	4.826254826
		4.1	200	45.51	4.394638541
		5.4	250	59.94	4.170837504
		6.7	300	74.37	4.033884631
		8.3	350	92.13	3.798979703
		10	400	111	3.603603604
		11.4	450	126.54	3.556187767
		13.2	500	146.52	3.412503413
		14.6	550	162.06	3.393804764
		17	600	188.7	3.179650238
		17.6	620	195.36	3.173628174	45℃
	14.8	1.3	100	19.24	5.197505198
		2.3	150	34.04	4.406580494
		3.3	200	48.84	4.095004095
		4.3	250	63.64	3.928346952
		5.3	300	78.44	3.824579296
		6.6	350	97.68	3.583128583
		7.8	400	115.44	3.465003465
		9	450	133.2	3.378378378
		10.4	500	153.92	3.248440748
		11.7	550	173.16	3.176253176
		13.4	600	198.32	3.025413473
		14.8	650	219.04	2.967494522
		16.2	700	239.76	2.919586253
		17.4	750	257.52	2.912395154
		19.2	800	284.16	2.815315315
		21	850	310.8	2.734877735
		22.5	900	333	2.702702703
		25.1	950	371.48	2.557338215
		26.7	1000	395.16	2.530620508
		27.6	1030	408.48	2.521543282	55℃
HQ5*4.5	11.1	1.6	100	17.76	5.630630631
		2.6	150	28.86	5.197505198
		3.9	200	43.29	4.62000462
		5.3	250	58.83	4.249532551
		6.6	300	73.26	4.095004095
		8.1	350	89.91	3.892781671
		9.5	400	105.45	3.793266951
		11.1	450	123.21	3.65230095
		12.8	500	142.08	3.519144144
		14.7	550	163.17	3.370717656
		16.4	600	182.04	3.295978906
		17.5	630	194.25	3.243243243	45℃
	14.8	1.3	100	19.24	5.197505198
		2.1	150	31.08	4.826254826
		3.1	200	45.88	4.359197908
		4.1	250	60.68	4.119973632
		5.3	300	78.44	3.824579296
		6.5	350	96.2	3.638253638
		7.5	400	111	3.603603604
		9	450	133.2	3.378378378
		10.2	500	150.96	3.312135665
		11.7	550	173.16	3.176253176
		13.1	600	193.88	3.094697751
		14.6	650	216.08	3.008145131
		16	700	236.8	2.956081081
		17.8	750	263.44	2.846948072
		20	800	296	2.702702703
		21.5	850	318.2	2.671275927
		23.8	900	352.24	2.555076084
		25.3	950	374.44	2.537122102
		27.8	1000	411.44	2.430488042
		28.9	1030	427.72	2.40811746	60℃

Includes:
1 x brushless motor
