FEATURES

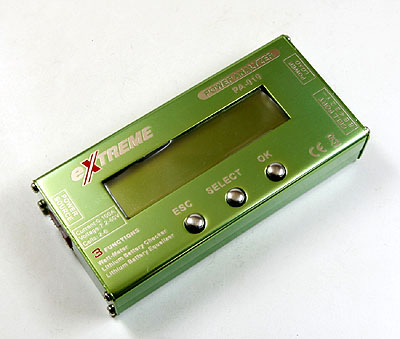

Power Checker is a very sophisticated electronic device. It has three functions
1. Watt Meter
It measures current (Amps), voltage (Volts), power (Watts) and charger (Amp-hours)
2. Voltage Checker

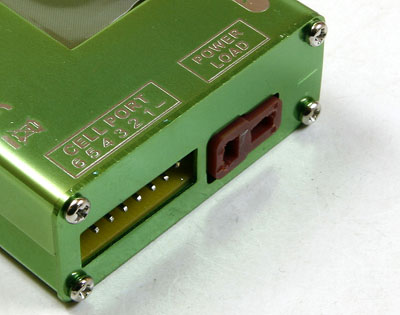

Voltage Checker allows you to check the individual cell voltages of 1 cell to 6 cells
lithium battery. It can handle all types of lithium batteries (LiPo, LiIon, LiFe).
3. Integrated Self Equalizer
Power Checker has an integrated balanced circuit which is self operative without
connect to charger. Battery pack will be equalized to the lowest cell voltage of the
pack.

Voltage: 0-60V (*1), resolution 0.01V
Current: 0-100A peak (*2) , resolution 0.1A
Power: 0-6000 W, resolution 0.1W
Cell Count: 1-6 cells
Battery Type: LiPo, LiIon, LiFe
Dimensions: 103x49.5x20mm
Net Weight: 105g
Display: 16 Cha. X 2 row LCD

(*1) 0V minimum with auxiliary power
(*2) 50A continuous, 100A peak, assumes device's wires are in free air and attached to connections at or below temperature of 35°C with adequate air flow. 100A operation time depends on ambient temperature and wiring temperature. In watt-meter mode, you can calibrate all values to zero by pressing 'SELECT' button for more than 3 seconds.

* Wrong polarity may cause damage to the device, and not covered by warranty.

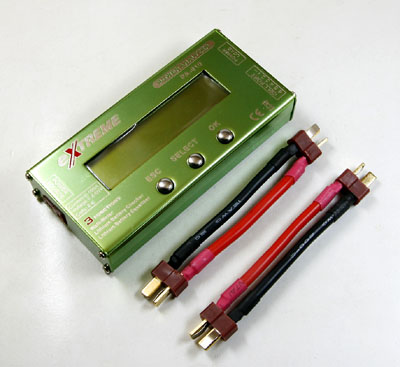

Includes:
1 x analyzer
1 x instruction manual
