   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis DYS 40A OPTO 2-6S Speed Controller (Simonk Firmware) for Multicopter | V2
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  DYS40O
Browse DYS

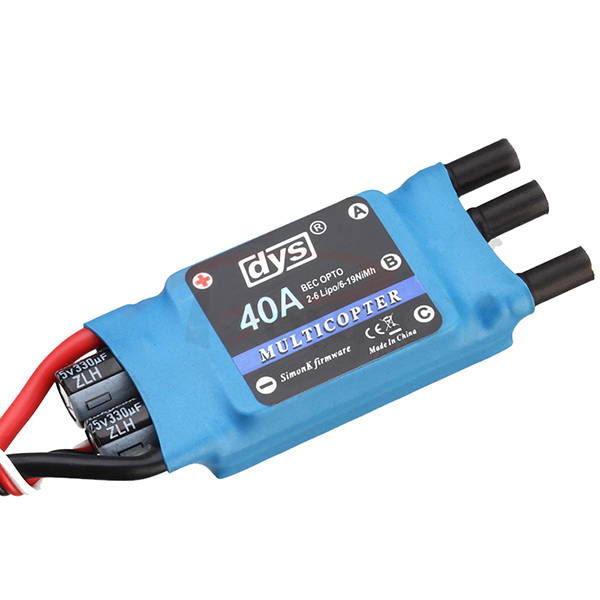

DYS 40A OPTO 2-6S Speed Controller (Simonk Firmware) for Multicopter | V2
Customers rating.
Add To Wish List
Added:2016/02/03
Updated:2016/02/03
Follow Us on:


  Tags: DYS SinonK Simon K firmware multicopter ESC speed controll

Features:

Features

 l Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
2 The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
3 Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
4 Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
5 Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
6 Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.

Specifications:

DYS 40A 2-6S Speed Controller (Simonk Firmware) for Multicopter | V2


1 Running current:40A(Output:  Continuous 40A, Burst 60A up to 10 Secs.)
2 Input Voltage: DC 6-22.2V(2-6S Lixx)
3 BEC:  No BEC
4 Size: 55mm (L) * 26mm (W) * 13mm (H)
5 Weight: 39g
6 With SimonK updated firmware for multicopter


Includes/Requires:
Includes:
1 x ESC
