DJI Ronin-S / SC Part 17 - Focus Motor
Customers rating.
Add To Wish List
Added:2019/09/07
Updated:2019/09/07
Follow Us on:



  Tags: DJI  Ronin-S  SC  Part  17  Focus  Motor

Features:

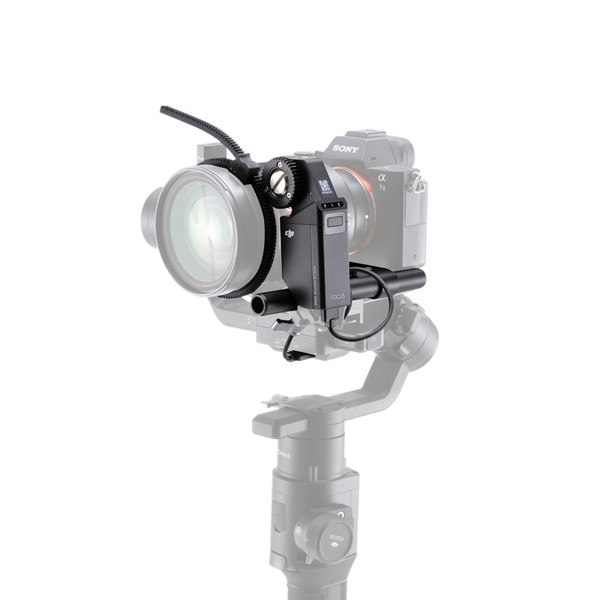

The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.
Specifications:

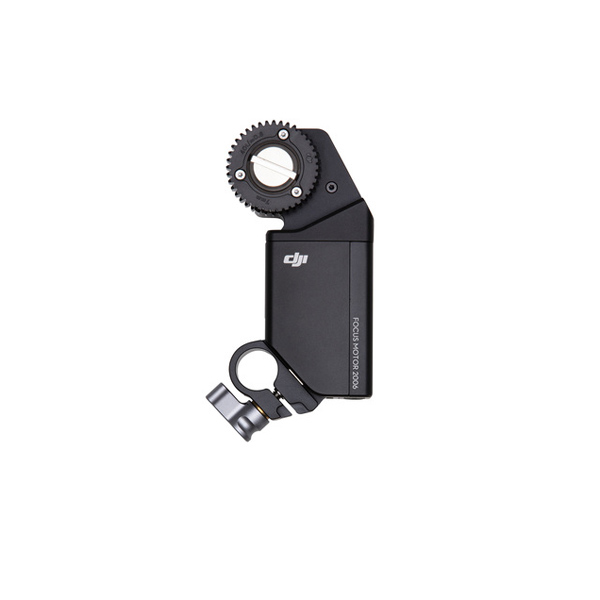

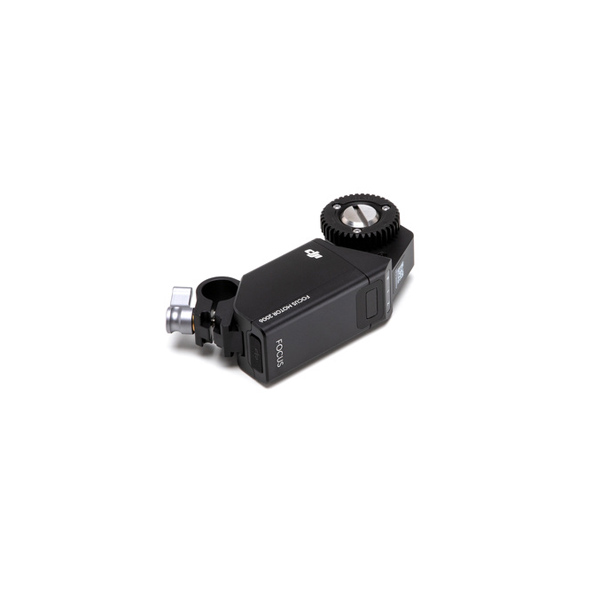

DJI Ronin-S / SC Part 17 - Focus Motor


Focus Motor:
Weight: 198 g (power cable included)
Dimensions: 110 x 53 x 30 mm
Max. Torque: 0.5 Nm
Max. Speed: 210 RPM
Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)
Operating Voltage: 6-17 V
Noise: 25 dB
Rod Clamp Inner Diameter: 15 mm
Gear: No. of teeth: 40; Module: 0.8
Operating Temperature: -20 to 55°C


Gear:
No. of Teeth: 151
Module: 0.8
Diameter: 30 to 110 mm
Length: 377 mm


Compatibility
Ronin-S

Includes/Requires:

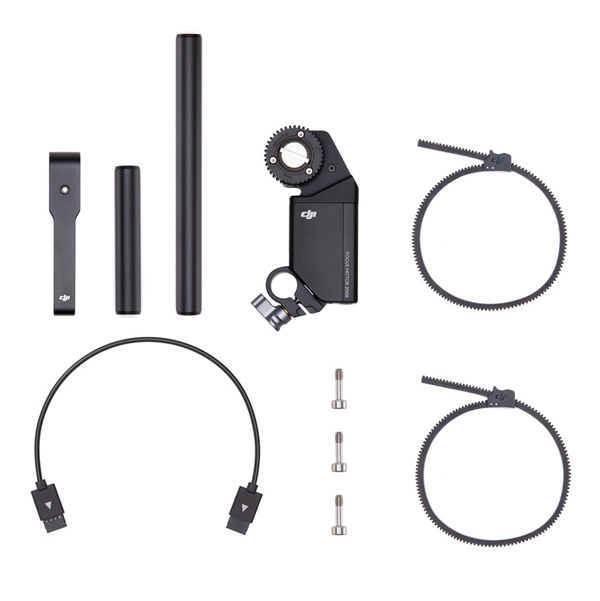

Includes:
Focus Motor × 1
Rod Mount × 1
15 mm Rod × 2
Screw × 4
Focus Gear Strip × 2
Power Cable × 1
