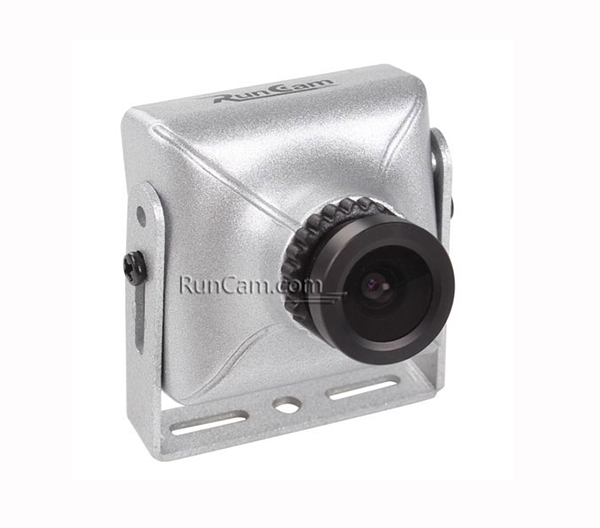

RunCam SKYPLUS 600TVL Mini FPV Camera - PAL

This is an optimized version of PZ0420, with Magnesium Alloy Case. It still keeps 600TVL resolution and excellent color rendition, supporting 5 to 17V wide operating voltage. The size is ONLY 31*31mm*21mm, which can reduce air resistance for FPV aircraft. Besides, the weight of camera is just 18g. It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight.

Features:

- Stronger and lighter: Magnesium Alloy case, stronger and lighter, better RF shielding, better heat dissipation.
- More colorful: 600TVL resolution and excellent color rendition, which is especially optimized for FPV. It adopts SNY CCD & Nextchip DSP, SamSung and PANASONIC's top resistor component and tantalum capacitor.
- The newly designed 5D-OSD button makes the control easier, supports Digital Wide Dynamic Range(D-WDR), Digital Noise Reduction(2 DNR) and Back light compensation (BLC).

RunCam SKYPLUS 600TVL Mini FPV Camera - PAL

Image Sensor	1/3 SONY SUPER HAD II CCD
Horizontal Resolution	600TVL
Lens	2.8/3.6mm
Signal System	PAL
OSD SET	YES
S/N Ratio	> 60dB(AGC OFF)
Electronic Shutter Speed	PAL: 1/50 to 1/100,000sec;
Auto Gain Control(AGC)	YES
Back light compensation (BLC)	YES
Min. Illumination	0.01Lux/1.2F
DNR	2DNR
Day/ Night	Auto/Color/B&W
Power	DC 5 to 17V
Net weight	18g
Dimensions	31mm * 31mm

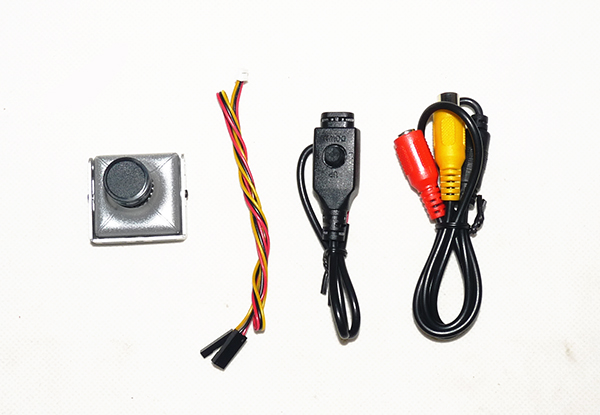

Includes:
1x camera
1 x video cable
1 x power cable
1 x OSD wire
