Racing Star 5.8G 40ch 600mW A/V Mini Transmitter (TX only) | SMA, jack

Transmitting power: 600mW(28dBm±0.5dBm)
Working frequncy: ISM 5.6GHz-5.95GHz 40 CH
Power input: 6V to 30V
Channel number: 40
Working currency: 280mA @12V
Connector type: SMA jack (module side)   Refer to here for connector type diagram
Weight: 14.5g
Dimension: 35 x 25 x 9mm

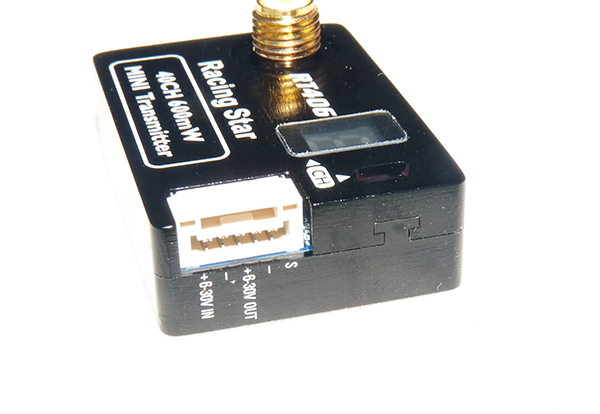

Wire sequence:
  1：Red：+ 6V ~ +30 V：VCC
  2：Black：GND
  3：Red : + 6V ~ +30 V：VCC OUT
  4：Black：GND
  5：Yellow：Video

Button function:
Short press to change channel number
Long press to change channel group

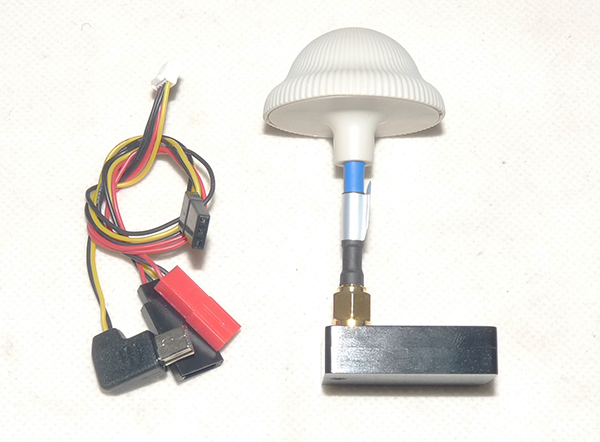

Includes:
1 x transmitting unit (TX only)

Requires:
1 x Receiver
