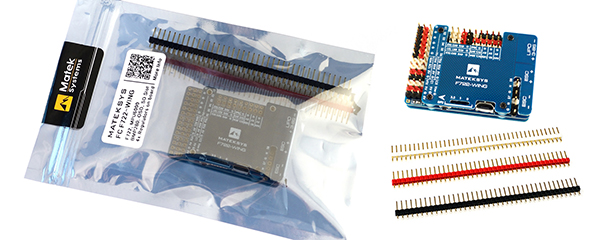

Matek F722-WING Flight Controller W/ Built-in OSD BEC
FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD card slot (SPI)
5x Uarts (1,2,3,4,6) with built-in inversion
1x Softserial-Tx
2x Motors, 6x Servos outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Switchable Dual Camera Inputs
Switchable 5V/9V for Camera/VTX
High-precision Current Sense
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
FC Firmware
INAV Flight/BetaFlight
Target: MATEKF722SE
PDB
Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
2x ESC power pads
Battery Voltage Sensor: 1:10 (Scale 1100)
Current Senor: 132A, 3.3V ADC, Scale 250
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.6A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output
Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 200mA
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 54 x 36 x 13 mm
Weight: 25g
