FPV/ Aerial Photography Telemetry/ Data logger MFDLink (Rlink) 16-Channel Long Range UHF System | New W/ SBUS Port
SKU:  RLINK16
Other Items of Interest
MFDLink (Rlink) 16-Channel Long Range UHF System | New W/ SBUS Port
Customers rating.
Manual:
Add To Wish List
Added:2013/12/20
Updated:2015/12/23

Follow Us on:


  Tags: Rlink  UHF

  Features:

The first UHF solution support 16-chan perfectly, proven with Taranis X9D and Jeti DC16. Based on the latest RF solution, super high sensitivity as -115dBm. Proven robust super fast frequency hopping algorithm, combined with Unique ID for every module(RAFHSS), ensure the excellent interference-immunity capacity. Support nearly all radios in the market from 2 channels to 18 channels if there is a trainer port included. Low and high power mode switchable(400mw and 800mw) Failsafe set in the Tx side by simply pressing one button. Support both 2-axis and 3-axis head-tracker directly, and randomly mapping the tracking channel among the 16 channels.  Support 2 PPM source input separately and randomly mapping Support 1 Tx to multiple Rxs and multiple Txs to 1 Rx. Frequency band configurable among 410-510Mhz(default 431-441Mhz). MicroUSB port included for configuration and firmware update, no need extra flash tools, no need any driver installed, support all OS systems,super easy to use. EXT port for extension, support Futaba Sbus and Spektrum/JR Satellite port and plan to support Joystick control, etc. Dual-direction communication is ready. Rich audio warnings for low voltage, wrong PPM connection or input, power switch, failsafe setting, binding, etc. Custom brushed metal case, well shielded and good heat dissipation, the lightest weight(64g only) make it easy to set up to your radio and won’t affect the COG. Diversity receiver with dual LED indicators, greatly improve performance. CPPM output in separated channel in the Rx side. RSSI output(analog buffered) in separated channel in the Rx side. Can-bus interface included in the Rx side for extension. Custom antennas with low VSWR for best performance. Different receivers to choose for different applications Fully tested with Futaba, Spektrum/JR, Turnigy/Flysky/imax 9x2, Frsky Taranis, Jeti, TDF, walkera, etc..
  Specifications:

Rlink 16-Channel Long Range UHF System

TX:

Size:73*65*15mm

Weight:64g

Working voltage:7-16v

Current:180ma@12v, low power mode

     360ma@12v, high power mode


RX:

Size:45*30*6mm

Weight:16g

Voltage:4-6v

Current:75ma@5v

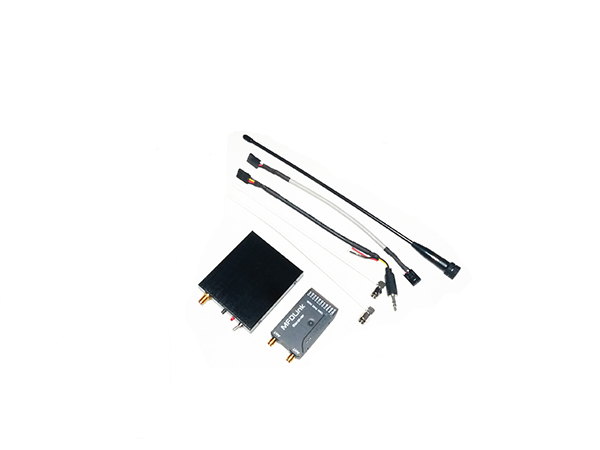

  Includes/Requires:

Includes:
1 x TX
1 X TX antenna
1 x RX
2 x RX antennas
3 x data wires

  Comments:

Hint:

 When install the receiver, keep the receiver as far as possible from other electronic devices like flight controller, camera or other devices which have electronic interference, when it is installed too close to other electronic devices which generate obvious interference, the range can be greatly reduced.
