   FPV/ Aerial Photography Video TX/RX & Accy. HiEE 5.8G 800mw 32-Channel A/V Transmitter TS3208
SKU:  TS3208

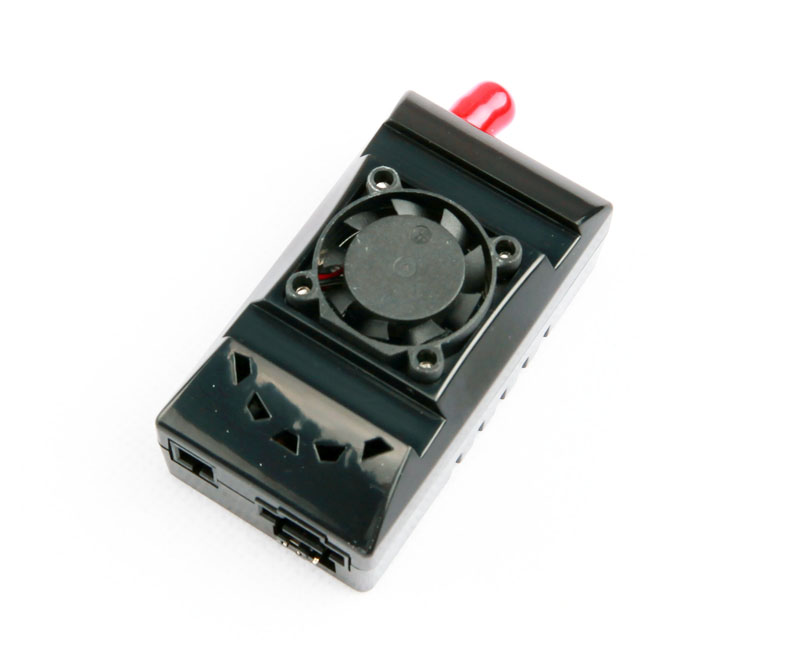

HiEE 5.8G 800mw 32-Channel A/V Transmitter TS3208
Customers rating.
Add To Wish List
Added:2014/07/24
Updated:2014/07/24
Follow Us on:


  Tags: HiEE 5.8G 800mw 32-Channel A/V Transmitter TS3208

Features:

Special features:
- 32 channels, compatible with most receivers available on market.
- 3-6S Wide input voltage range.
- Large PCB design, ensures heat radiation & reliability during long time transmission.
- Integrated Voltage regulator, supports output 12V or 5V for different cameras, 12V output by default.   (output voltage is optional by using jumper)

Special hints:
1. Output voltage can only be done before the TX is powered on.
2. Antenna must be securely installed before power on.
3. Channel switching can only be done before the TX is powered on, channel switching will not work under power.
4. There are two different colors for this item, white and black, will send random based on stock availability.
Specifications:

HiEE  5.8G 800mw 32-Channel A/V Transmitter TS3208

video format supported: NTSC/PAL  (auto)
Audio format supported: 6.0M and 6.5M audio coding, support conventional AAT system
Power input: 3-6S
Working current: 210MA @12V
Antenna connector: RP-SMA, jack (module side)
Dimension: 64x 35 x 27mm
Weight: 46g (TX module only)

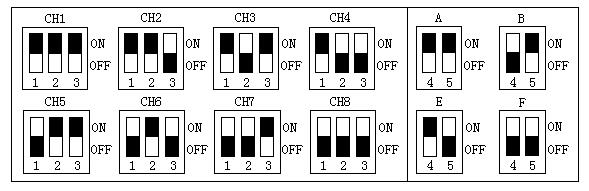

CH

CH

FR



CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

FR

FR1(A)

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

FR2(B)

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

FR3(E)

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

FR4(F)

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5860M

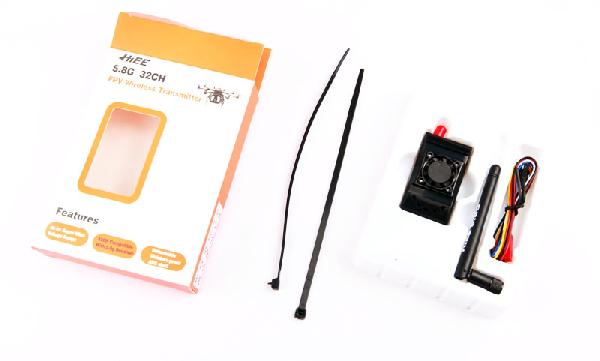

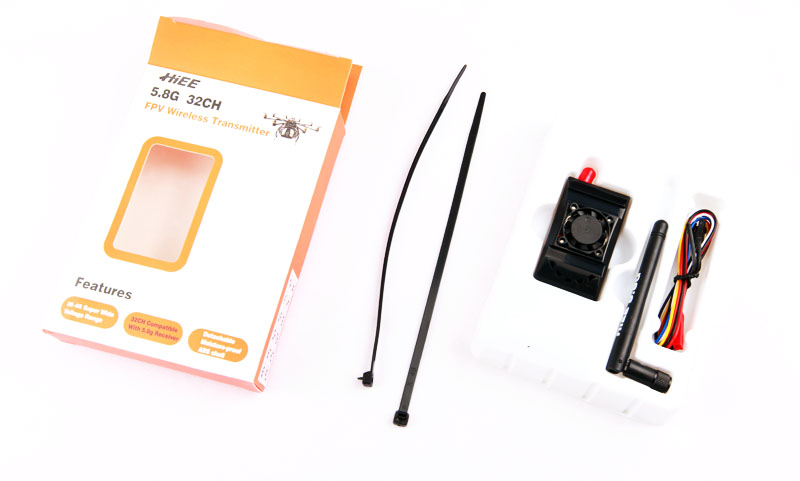

Includes/Requires:
Includes:
1 x transmitting unit (TX)
1 x power supply cable
1 x 5.8G 2db antenna
1 x A/V wire
