   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 40CH Diversity A/V Receiver (VRX) (RP-SMA, jack) RD40
SKU:  58GR40
FPV 5.8G 40CH Diversity A/V Receiver (VRX) (RP-SMA, jack) RD40
Customers rating.
Add To Wish List
Added:2015/09/15
Updated:2015/09/15
Follow Us on:


  Tags: video recording system  FPV diversity receiver redundancy receiver

Specifications:

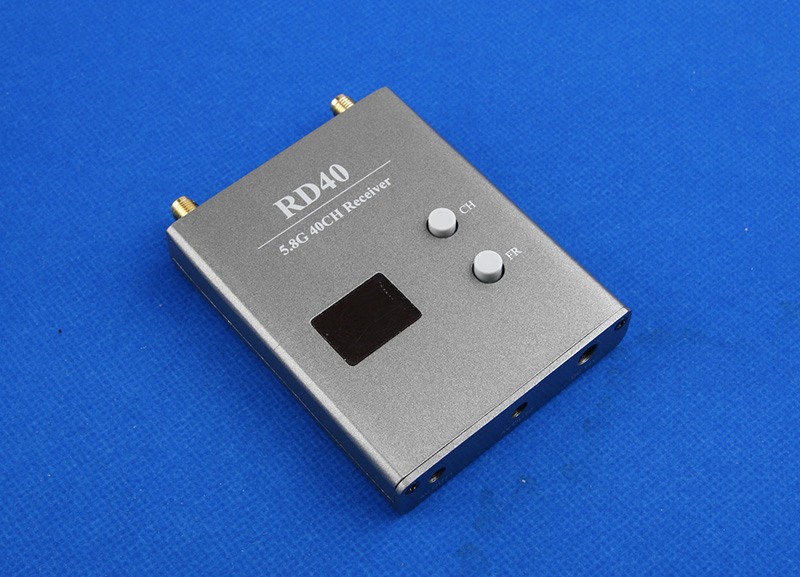

FPV 5.8G  40CH Diversity A/V Receiver (VRX)  (RP-SMA, jack) RD40


Power input: 7-24V
Working current: 280mA @ 12V
Receiving sensitivity: -90dBm

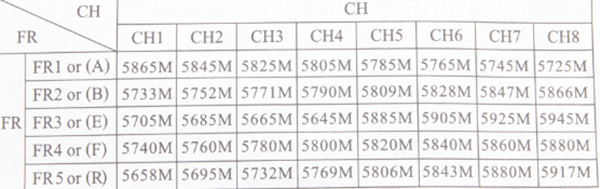

Receiving frequency: ISM 5.8GHz 32CH
# of video output: 2
Dimension: 80x65x15mm (excluding antenna)
Weight: 100g

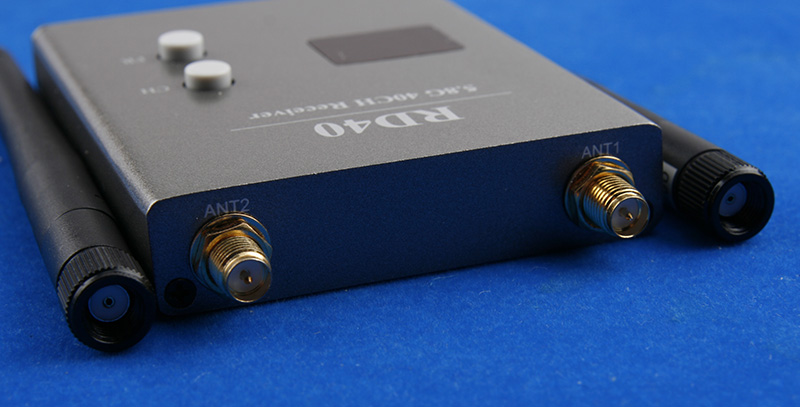

Antenna connection: RP-SMA  jack (TX module side)   Refer to here for connector type diagram

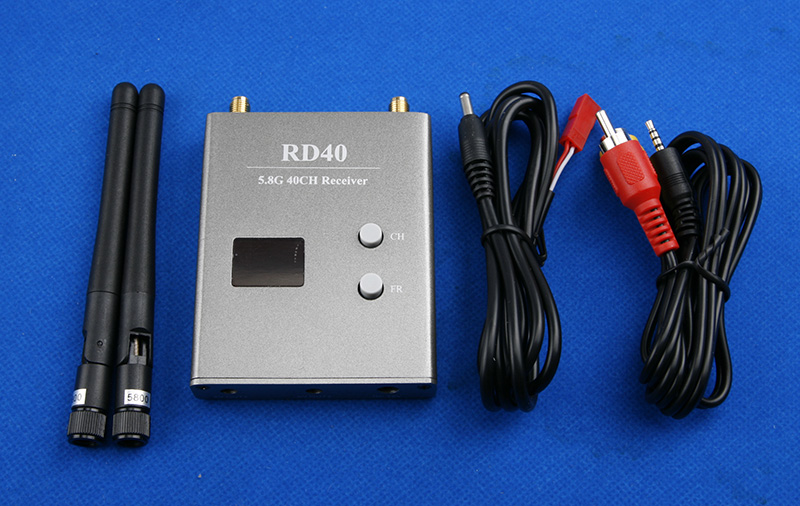

Includes/Requires:
Includes:
1 x receiver (VRX)
1 x cable
2 x TX antennas
1 x power supply wire
