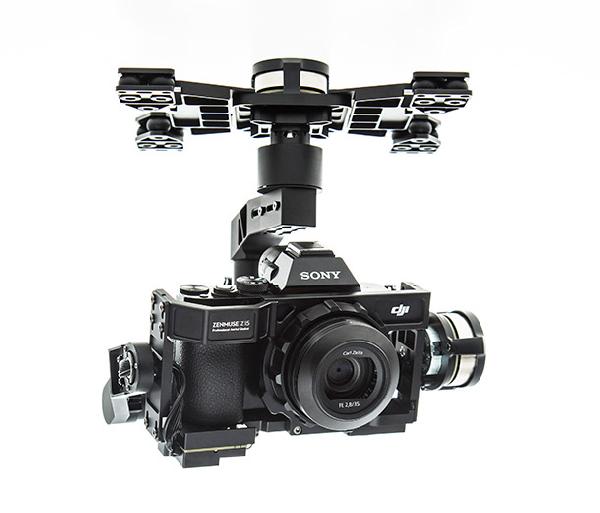

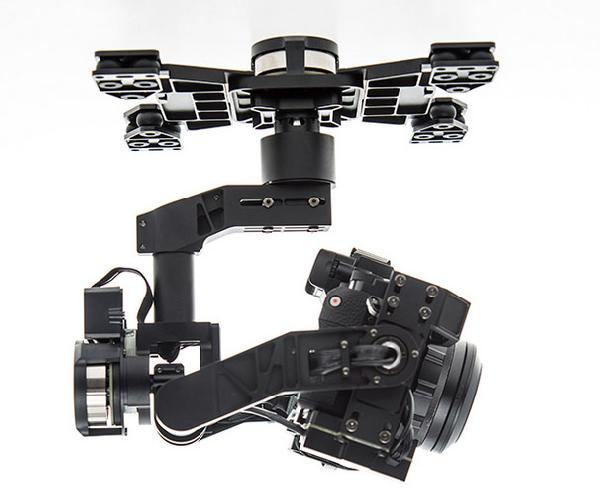

DJI Z15-A7 Gimbal (Suit for Sony A7S/ A7R)

Zenmuse Z15-A7 Features

Achieve Low-Light Aerial Creativity
Unmatched Zenmuse Precision and Stability
Streaming Video
Complete 360° Control
Fully Compatible Solution
Multiple Control Modes
Gimbal Servo Drive Module
Built-In Independent IMU Module and Infrared Module

DJI Z15-A7 Gimbal (Suit for Sony A7S/ A7R)

Specification
General	Built-In Functions	1. Three Modes
		- Orientation-locked control
		- Non orientation-locked control
		- FPV mode (Reset)
		2. Built-in independent IMU module
		3. DJI gimbal special servos drive module
		4. HDMI-HD/AV module
		5. Infrared remote control module
		6. Wireless video transmission supported
		7. Camera shutter/video recording control supported
		8. Wide range voltage input supported
		9. S-Bus Receiver supported
Peripheral	Supported Camera	Sony ILCE-7S; Sony ILCE-7R
	Supported Lens	Sony FE 35 mm f2.8 ZA
	GCU Input Power	4S~12S LiPo (Recommend 6S if with S1000+)
	Control Requirement	At least four spare receiver channels
	Assistant Software System Requirements	Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mechanical & Electrical Characteristics	Working Current	Static current: 200 mA (@25 V)
		Dynamic current: 400 mA (@25 V)
		Locked-motor current: 4 A (@25 V)
	Operating Temperature	-10¢XC ~ 50¢XC
	Weight	1.3 Kg
	Dimensions	210mmX204mmX246mm
	GCU Weight	63g
	GCU Dimensions	64.2 mm ×34.1mm ×19.5mm
Working Performance	Load Weight (Reference Value)	622 g(@Sony ILCE-7S with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card)
		580 g(@Sony ILCE-7R with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card)
	Angular Vibration Range	±0.01°
	Maximum Controlled Rotation Speed	Pan axis: ±130°/s
		Tilt axis: ±130°/s
		Roll axis: ±30°/s
	Controlled Rotation Range	Pan axis control: ±360° continuous rotation
		Tilt axis control: +50°/-140°
		Roll axis control: ±40°

Includes:
1x DJI Z15-A7 Gimbal

* This is the gimbal only, Camera or drone are NOT included.
