DJI Lightbridge is a revolutionary 2.4G Full HD digital video downlink offering extremely powerful technology in a small and lightweight form. By offering 1920 x 1080p@30fps video data transmission from up to 1.7km (1.05miles) away, it's the ideal solution for professional aerial creators and FPV users. It features an aluminum alloy casing, and extreme internal and external shielding for interference protection. Recharging can be done through the supplied charger or a 3S~6S Li-Po battery. Each charge lasts for up to 4.5 hours. Give your creativity a boost with pin sharp imagery today.

Features

• The First All DJI 2.4G Full HD Digital Video Downlink

  Up to 1.7 km (1.05 miles) long distance transmission

  Up to 1080p60 input and 1080i60 output support

  Low latency. Maximum latency of approximately 150ms.

  Use with other low latency film making equipment for the best experience.

• Master-Slave Mode

  One ground system sends control signals and receives video, additional ground systems receive only video.

• Dual Video Input Support

  DJI Zenmuse HD gimbal input support.

  Simultaneous HDMI and AV input support allows pilot monitoring and camerawork at the same time using just one system.

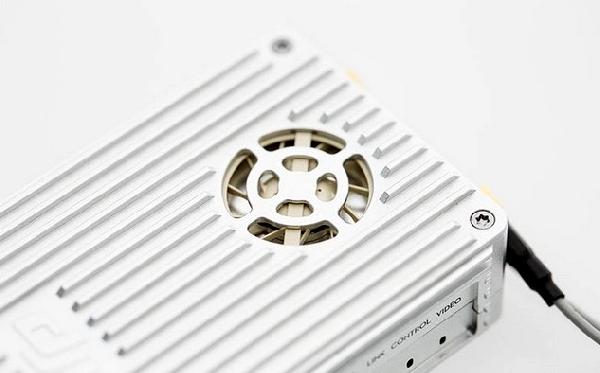

• Aluminum integrated electromagnetic shielding design

• Multiple Mobile Device and HDMI HD Display Support

  Charges USB devices, increasing on-set functionality.

  USB 2.0 image data output for iOS and Android synchronization.

  Android 4.1.2 or above recommended.

• Advanced Security

  Encryption ensures only authorized devices receive data. Encryption can be set up through the Lightbridge app.

  Multiple downlinks can be connected for parallel streaming. Each can work independently without interference.

  Use with DJI multirotor flight controllers to make your flights even safer.




DJI Lightbridge 2.4G FULL HD DIGITAL VIDEO DOWNLINK

Performance Parameters	Transmission Distance (Outdoor And Unobstructed) 1.7 Km EIRP 100mW Receiver Sensitivity（1%PER） -101dBm ±2dBm Working Frequency 2.4GHz ISM Air System Antennas Gain 2.0±0.7dBi@2450MHz Ground System Antennas Gain 5.0±0.7dBi@2450MHz
Physical Parameters	Operating Temperature -10~50 °C Dimension (No Antennas） Air system: 68mm(L)X48mm(W)X21mm(H) Ground system: 125mm(L)X90mm(W)X20mm(H) Gross Weight （No Antennas） Air system: 71g Ground system: 295g
Hardware Functions Supported	Antenna Connector MMCX Male (air system), SMA Male (ground system) Air System Operating Voltage 3S~6S Ground System Operating Voltage 3S~6S Air System Operating Amperage 700mA ±20mA(@12V) Ground System Operating Amperage 600mA ±10mA(@12V)
DJI Lightbridge Application Equipment	Video Input Format AV PAL25 NTSC30 HDMI 720p50 720p60 1080i50 1080i60 1080p25 1080p30 1080p50 1080p60 Recommended Mobile Device Samsung Galaxy Note3 QCOM, N9005, N9006 Samsung Galaxy Note3 Exynos, N900 Samsung Galaxy S4 Samsung Galaxy Mega Optimus G Pro LG Electronics LG Electronics G2 Sony Xperia Z (L36h) Sony Xperia Z Ultra (XL36h) Samsung Galaxy Tab Pro 10.1” Samsung Galaxy Tab Pro 8.4” Samsung Galaxy Note 10.1” Google Nexus 7 32 Gb LTE Google Nexus 7 16 Gb Wifi LG 8.1” Tablet System Requirement Of Mobile Device Android system (version 4.1.2 or above) Supported HD Display Device Konka 32-inch LED32M1200AF Konka 42-inch LED42M3820AF Konka 42-inch LED42X9600UF Skyworth 55E680E TCL L40F3309B TCL 4K*2K Smart 3D Cloud TV L5E5690A-3D Konka LED46F5580F LG 27EA33 Monitor 12-inch ORTECA Portable Monitor 7-inch FEELWORLD Portable Monitor 27-inch SAMSUNG S27D360H Monitor Ideal LED TV 3261 Zeiss Cinemizer Vuzix Wrap 1200DXAR Vuzix M2000AR SONY HMZ-T3W-H Samsung 28” TV 1080i 60Hz LG 55LA6200 55” 1080i 60Hz ikan VH8 8” Samsung 46” TV (model 7080) Samsung UE40D7080 HDTV Scott TVX150 HDTV Feelworld 10.1” FPV monitor (450cd/m2 version) Feelworld 7” FPV DVR monitor Lilliput 664/w 7” IPS field monitor Lumenier 10.1” LCD monitor Lilliput 7” monitor Sony HMZ-T2 video goggles Phottix Hector 7HD
