   FPV/ Aerial Photography Video TX/RX & Accy. DALRC 5.8G 600mW 32Ch A/V Transmitting (TX) Module - White, 12V Output
SKU:  TX6012WH
Browse DALRC

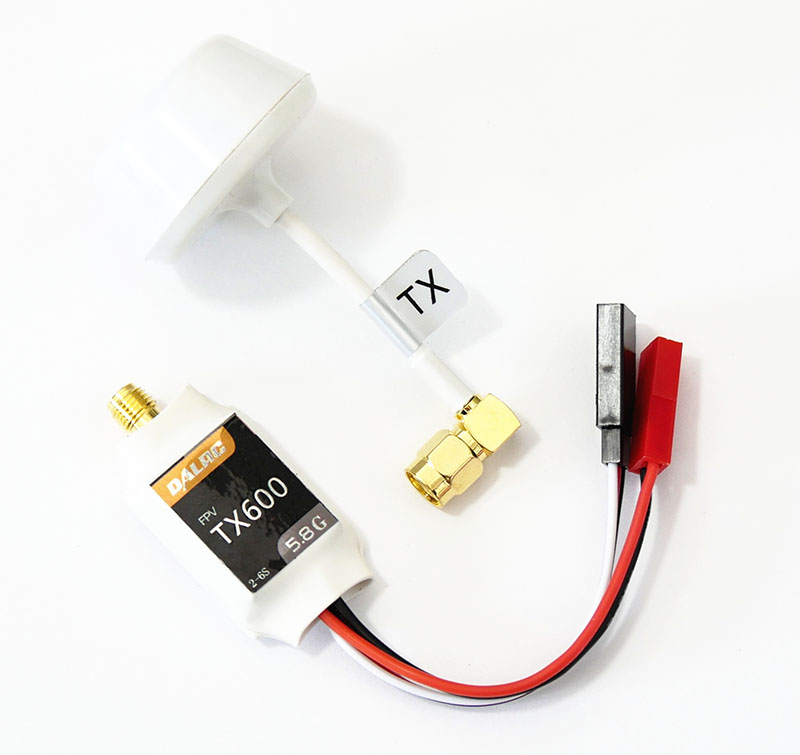

DALRC 5.8G 600mW 32Ch A/V Transmitting (TX) Module - White, 12V Output
Customers rating.
Add To Wish List
Added:2015/03/07
Updated:2015/03/07
Follow Us on:


  Tags: video recording system  FPV  32 channels DL DALRC

Features:

Features:

- 600mW  power
- 32 channels
- Long distrance
- Compact size (37 x 22 x 8.5mm)
- Light weight, 11g only
- Wide power input: 7-26V
- With 12V output




Specifications:

DALRC 5.8G 600mW 32Ch A/V Transmitting (TX) Module - White, 12V Output

Antenna connection: RP-SMA, jack (module side ) See connector type diagram
Power input: 7-26V  (3S recommended)
Transmitting power: 27DBm (Max)
Working current: 350mA (@12V) ;  700mA when charging Gopro camera
Channel number: 32
Dimension: 37 x 22 x 8.5mm
Net weight: 11g


*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.











Includes/Requires:
Includes:
1 x transmitting unit (TX)
1 x antenna


Requires:
1 x receiver (RX)
