   FPV/ Aerial Photography Video Glasses/ Monitors 7 inch 5.8G 32CH Diversity Receiver FPV Monitor RX-LCD5802
SKU:  5802NW

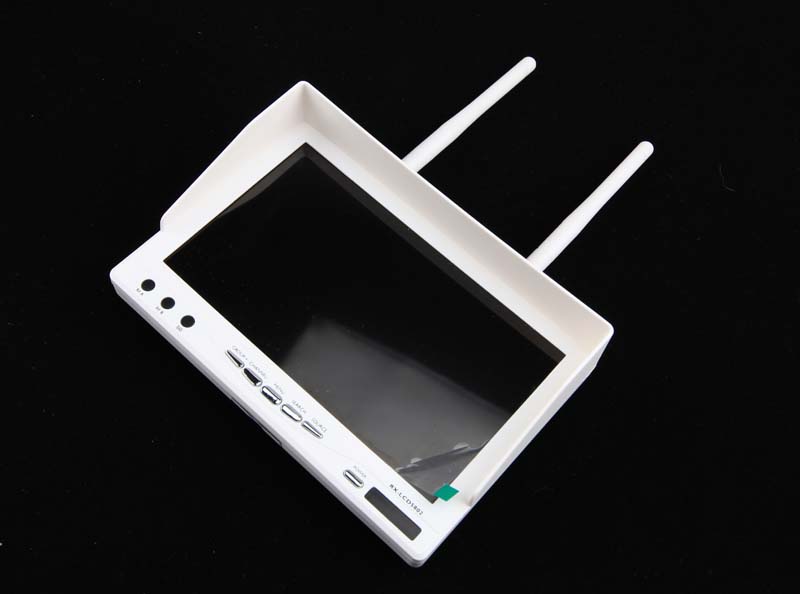

7 inch 5.8G 32CH Diversity Receiver FPV Monitor RX-LCD5802
Customers rating.
Manual:
Add To Wish List
Added:2014/03/19
Updated:2015/05/20
Follow Us on:


  Tags: 5.8G FPV monitor diversity receiver

Features:

Features

²  Built-in Dual Receiver Automatically for best reception. Automatic Antenna Switching

²  Dual buffered AV outputs

²  Can receive 2 different channels at the same time

²  Not affect by 2.4GHz R/C Radios

²  AV Receiver with Diversity inputs

²  Small, light weight, durable

²  4 Bands and total 32 Channels

²  Akey to automatic signal searchSimple operation

²  Work status OSD displayAlways be aware of the device working condition.

*THERE ARE TWO VERSIONS FOR THIS MONITOR, ONE WITH BUILT-IN BATTERY, ANOTHER WITHOUT BATTERY, THIS IS THE NONE-BATTERY VERSION.

Specifications:

7 inch 5.8G 32CH Diversity Receiver FPV Monitor RX-LCD5802

Specification

²  Built-in 5.8Ghz Dual diversity receiver automatically forbest reception

²  Built-in 2CH 5.8Ghz AV output and 1CH AV input

²  Work status OSD display RSSI indication ; Battery indicatorChannel indication

²  A key to automatic signal search

²  Support Chinese and English menu

²  Size 180mm x 120mm x 50mmNoteSunshield height28mm

²  Working Voltage DV 7-16V

²  Power Consumption 650 mA @12V

²  Working temperature -10℃~+ 65 ℃


Antenna connector: SMA jack (on monitor side)

Display Parameters

²  Screen size7”

²  Screen typeTFT LCD Screen/long life, LED backlight

²  Resolution 800*480

²  Brightness 450cd/m2

²  View Angle140/120degree (Horizontal/Vertical


Bandand Channel selection

     CH

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

GROUP

A

5865 MHZ

5845 MHZ

5825 MHZ

5805 MHZ

5785 MHZ

5765 MHZ

5745 MHZ

5725 MHZ

b

5733 MHZ

5752 MHZ

5771 MHZ

5790 MHZ

5809 MHZ

5828 MHZ

5847 MHZ

5866 MHZ

C

5705 MHZ

5685 MHZ

5665 MHZ

5645 MHZ

5885 MHZ

5905 MHZ

5925 MHZ

5945 MHZ

d

5740 MHZ

5760 MHZ

5780 MHZ

5800 MHZ

5820 MHZ

5840 MHZ

5860 MHZ

5880 MHZ






*  THE MANUFACTURER MAY USE SAME OUTER PACKING FOR MANY DIFFERENT VERSIONS OF PRODUCTS, SO THERE MAY HAVE MANY DISCREPANCIES  ON THE OUTER PACKING, PLEASE DISREGARD THOSE DISCREPANCIES IF ANY.










Includes/Requires:

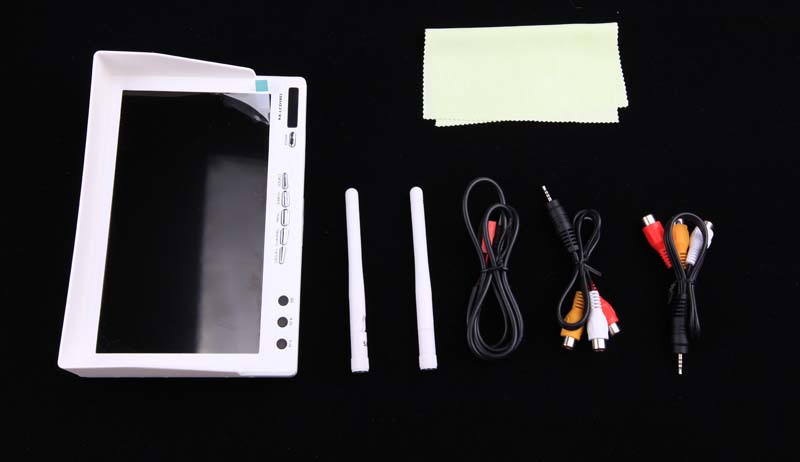

Includes:
1 x monitor
2 x 2db antennas
2 x AV wires
1 x power input cable
1 x manual
