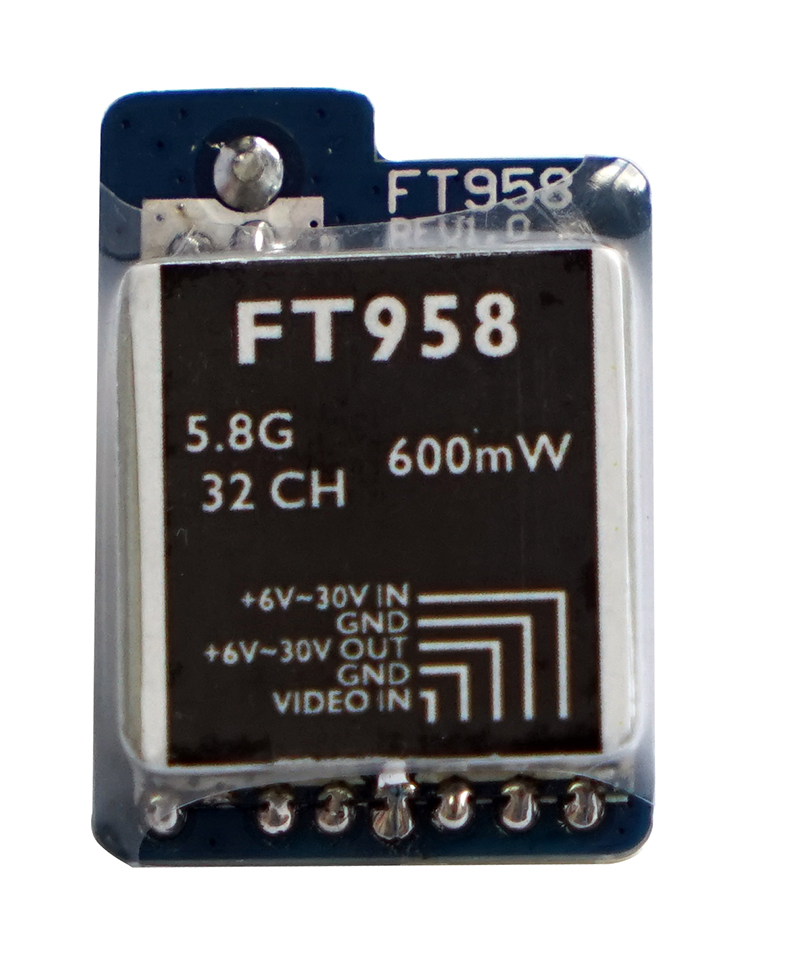

5.8G 32Ch 600mW A/V Transmitter FT958 - 90 degree Edition

Power input: 6 - 30V
Transmitting current: 280mA±10mA  @12V
Transmitting power: 600mw
Video format: PAL/NTSC/SECAM (AUTO)
Dimension: 30 x 22 x 15mm
Weight: 9g (excluding antenna and wire)
Antenna connector: SMA, jack  (on module side)

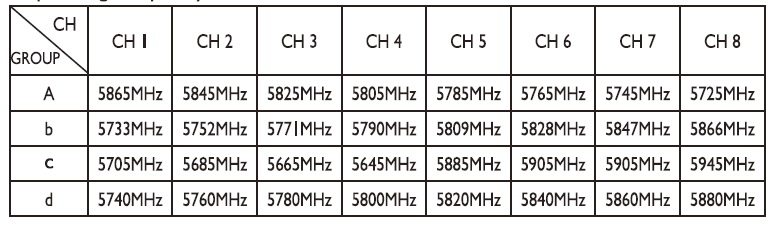

Operation methods:

Short pressing the button to change channel number;
Long pressing the button to change group.

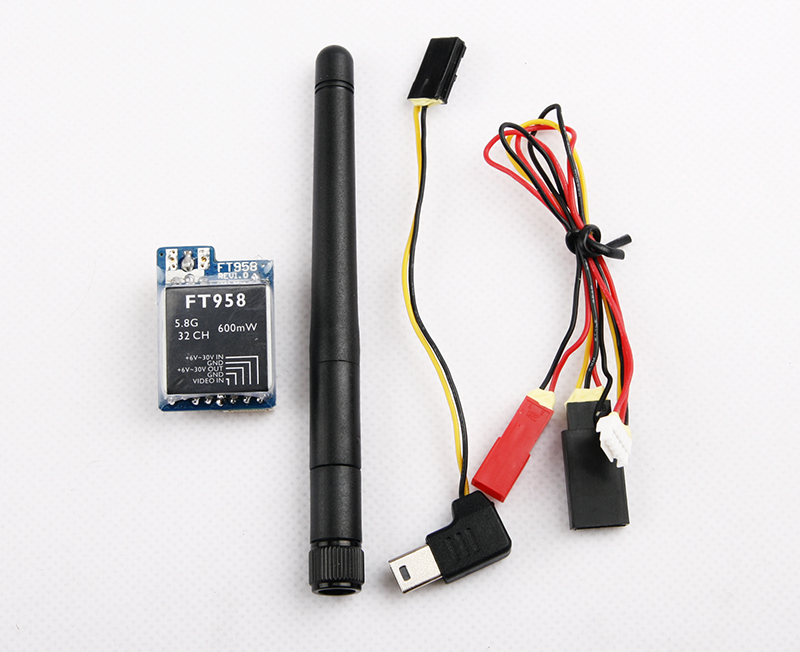

Includes:
1 x transmitting unit (TX) with antenna (VTX)
1 x antenna
1 x 5-pin cable
1 x Gopro cable
