   Radios Servos & Accessories Standard/Middle Size Servos Corona 20kg / 0.18sec / 65.5g Metal Gear High Voltage Digital Servo DS-559HV
SKU:  DS559HV
Browse CORONA

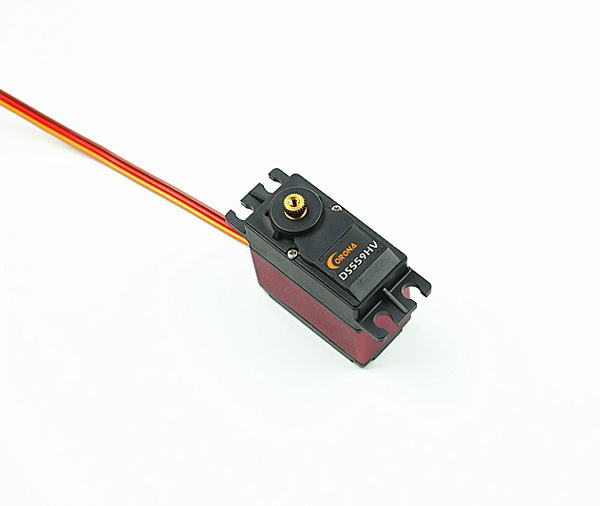

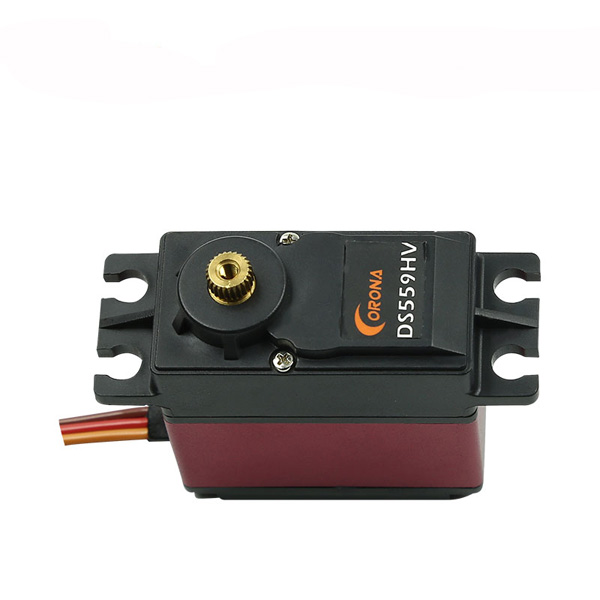

Corona 20kg / 0.18sec / 65.5g Metal Gear High Voltage Digital Servo DS-559HV
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  20kg  0.18sec  65.5g  Metal  Gear  High  Voltage  Digital  Servo  DS-559HV

Specifications:

Corona 20kg / 0.18sec / 65.5g Metal Gear High Voltage Digital Servo DS-559HV


Item： DS559HV
Size: 40x21x41mm(1.57"x0.82"x1.6")
Weight: 65.5
Operating voltage: 6V / 7.4V
Operating current: 300mA / 400mA
Operateing speed: 0.20sec.60º/ 0.18sec.60º
Stall torque: 16kg.cm / 20kg.cm
Dead band: ≤3uSec
Operating speed: 40º/one side pulse traveling 400us
Potentiometer: 5 slider/Indirect Drive
Ball bearing: MR106
Gear Material: Metal
Connector wire length: 300mm
Temperature: -20 ℃ to +60℃
Includes/Requires:
Includes:

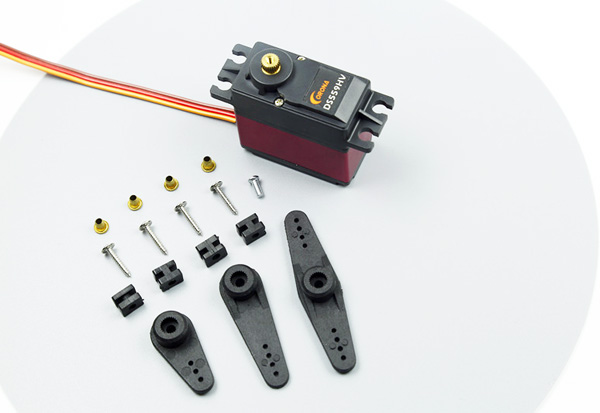

1 x servo with servo horns
