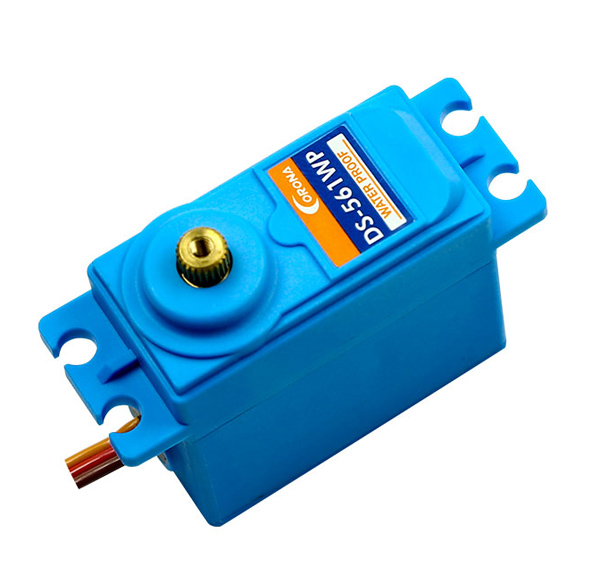

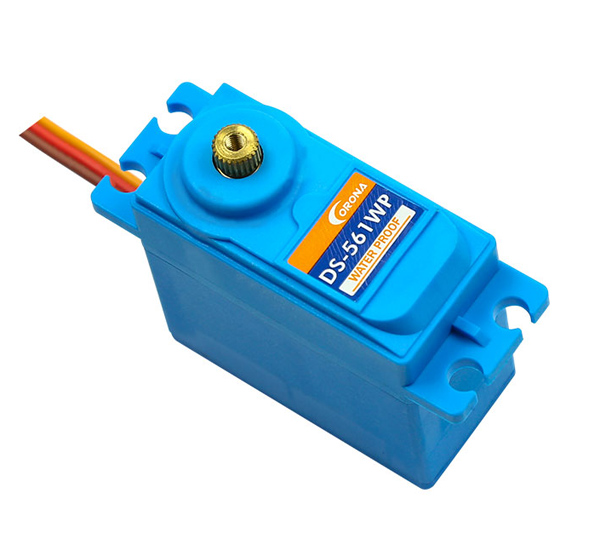

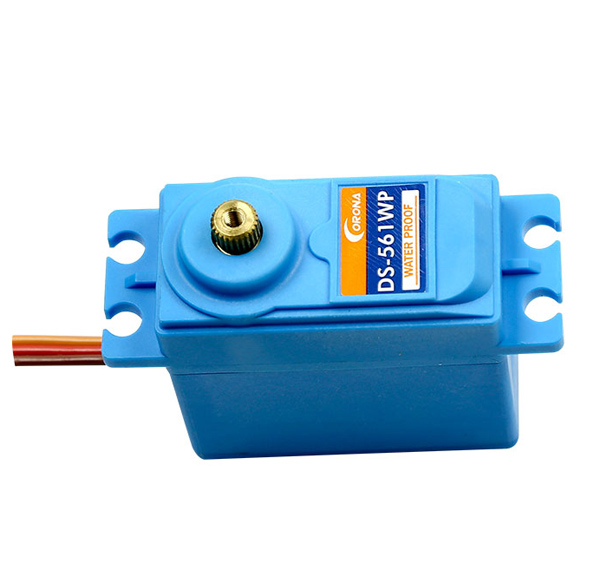

Corona 10kg / 0.16sec / 63.6g Metal Gear Large Torque Waterproofing Digital Servo DS-561WP
|
Corona 10kg / 0.16sec / 63.6g Metal Gear Large Torque Waterproofing Digital Servo DS-561WP |
|
|||||||
|
|||||||||
|
|||||||||
| Tags: Corona 10kg 0.16sec 63.6g Metal Gear Large Torque Waterproofing Digital Servo DS-561WP | |||||||||
| Item No: | DS561WP |
| Dimension： | 41.8*20*40.8mm(1.65"*0.82"*1.61") |
| Weight： | 63.6g |
| Operating Voltage： | 4.8V/6.0V |
| Operating Current： | 300mA / 400mA |
| Operating speed ： | 0.18sec.60º / 0.16sec.60º |
| Stall torque： | 8.5kg.cm/10kg.cm |
| Dead band： | ≤3uSec |
| Operating range： | 40º/one side pulse traveling |
| Potentiometer ： | High Precision |
| Ball bearing： | MR106/MR126 |
| Gear: | Metal |
| Wire length: | 300mm |
| Operating Temperature Range： | -20℃ to +60℃ |
|
