   Multi-rotors Kit & Frame HiModel 1050mm 3K Carbon Large Scale Octocopter Kit for Commercial Aerial Photography
SKU:  HI-N1050
Accessories Required
Browse HiModel
HiModel 1050mm 3K Carbon Large Scale Octocopter Kit for Commercial Aerial Photography
Customers rating.
Manual:
Add To Wish List
Added:2013/04/18
Updated:2018/07/12
Follow Us on:


  Tags: fpv carrier  Quadcopter  eight-roter  octocopter  aerial photography

Features:
This octocopter is designed for commercial aerial photography application:

-  3K carbon structure,  strong yet light in weight.

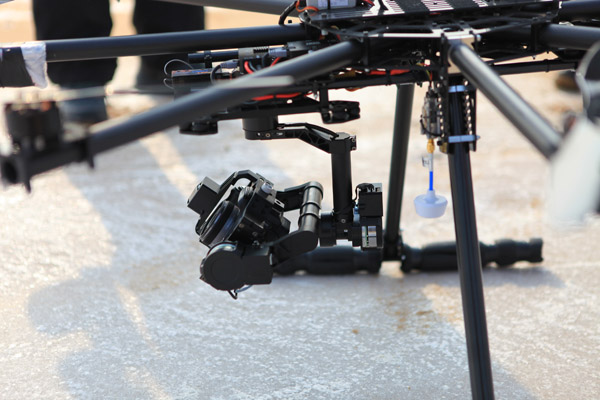

-  Dual shock absorbing design for Gimbal system, effectively eliminate "rolling shutter" effect.

-  Shock absorbing design for flight control system.

-  Optimized for DJI  WOOKONG flight control and ZENMUSE Gimbal (not included)
-  Two battery mounting positions.
-  Heavy duty landing skid

During our real testing, it can work 15 minutes under below setting:
Fly weight is around 9-9.5kg,  using 6S 20000mAh Lipo battery, cut-off voltage is set to 3.7V/cell.
Specifications:

HiModel 1050mm  Large Scale Octocopter Kit for Commercial Aerial Photography

Material: 3K carbon and aluminum fittings.
Rotor spacing: 1050mm
Height: 50cm
Rotor number: 8
Kit net weight: 1500g
Fly weight: 8 to 12Kg (depending on motors used)
Central plate size:  28cm, thickness 2mm
Arm tube diameter: 22mm
Motor plate mounting hole spacing: 25 x 25mm

Recommended setting (not included):

Flight control and gimbal: DJI  WOOKONG  + ZENMUSE Gimbal
Camera: Canon 5D2 etc.
Motor:  8-10Kg fly weight  HL4230 370-400KV, fly time about 15 minutes with 20Ah 6S Lipo
             10-12Kg fly weight HL4830 370-400KV, fly time about 10 minutes with 20A 6S Lipo
Speed controller: 30A 6S
Prop size: 15x5.5inch
Battery: 5000mAh 6S x4

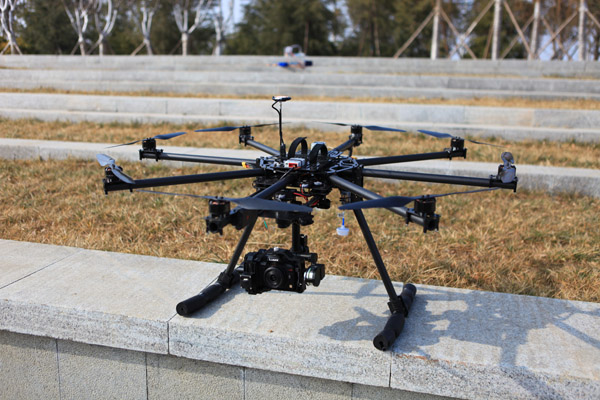

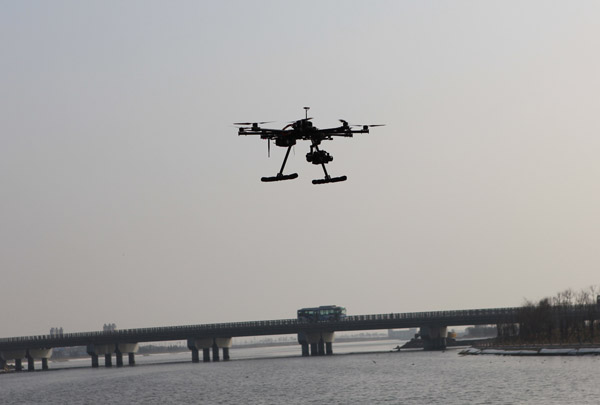

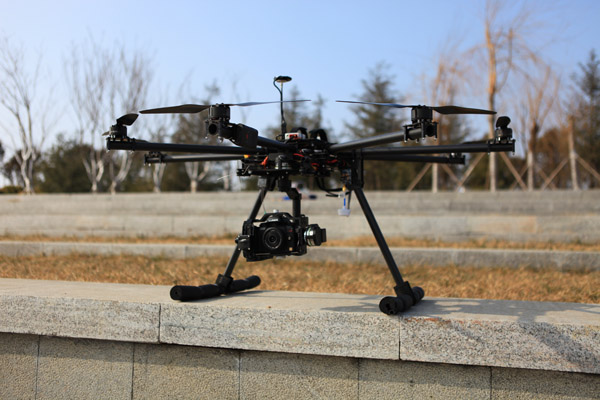

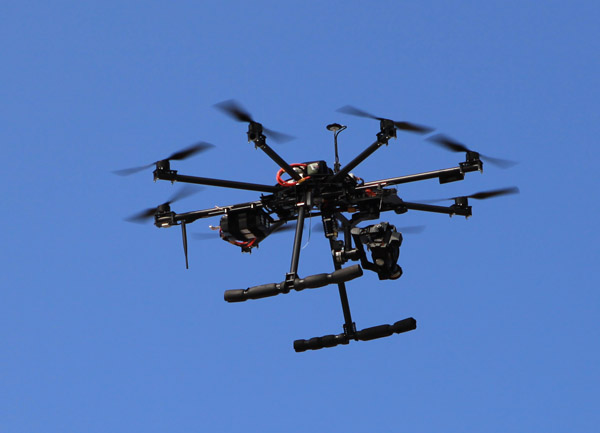

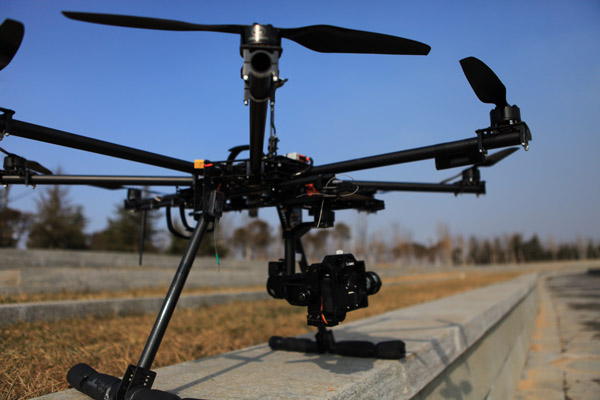

* Electronics on the photos are for demonstrating purpose, and not included in this kit.







Includes/Requires:
Includes:

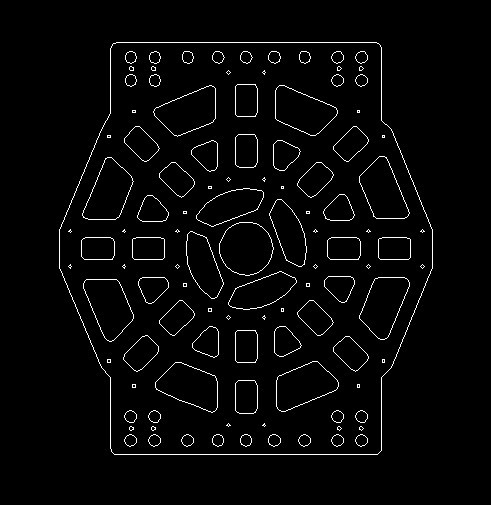

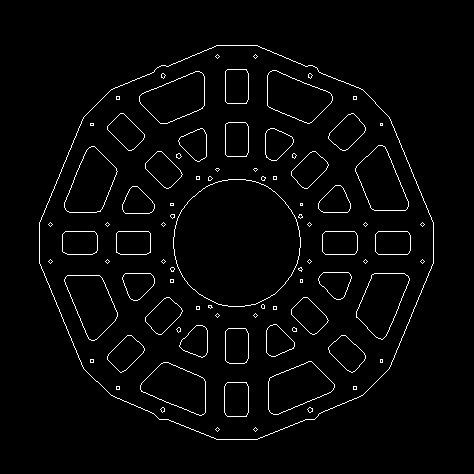

2 x central plates

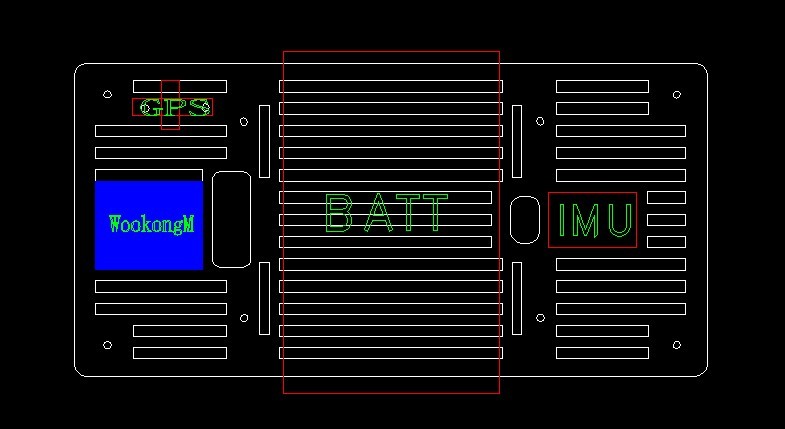

1 x upper battery plate
1 x lower battery plate
6 x shock absorbing screws
4 x gimbal shock absorbing plates
16 x shock absorbing balls
4 x nylon screws
2 x nylon fixing bases
8 x motor mounting plates
8 x  Leg clamping plates
44 x D22mm tube clamps
8 x 12mm tube clamps
8 x D22mm, 50CM length carbon tubes
2 x D22mm, 45cm length carbon tubes
2 x D12mm, 40cm length carbon tubes
2 x D12mm, 60cm carbon tubes

*  Please refer to here for parts list.
* This is the frame kit of the octocopter, NO electronic accessories are included.
* There is no instruction manual for this kit currently, basic DIY skills are needed.
