Tags: FrSky,  2.4G,  2.4GHZ,  two-way,  2-way,  telemetry,  D4R-II

Features:

Features

1) Firmware upgradeable;

2) One external analog telemetry port and one digital data-stream port (connect to FrSky Sensor Hub FSH-01);

3) CPPM output and RSSI (PWM) - If CH3 and CH4 are connected by a jumper, CH1 will output CPPM for CH1~CH8, and CH2 will output RSSI (PWM);

4) Lighter weight and physically smaller than D8R-IIplus & D6FR;

5) Alarm warning on low voltage, poor reception, etc.

Specifications:

Dimension: 40*22.5*6mm

Weight: 5.8g / 5g (naked)

Operating Voltage Range: 3.5V-10.0V

Operating Current: 60mA

Operating Range: Full Range (>1.5km)

Resolution: 3072 (>11bit)

Compatibility

Compatible with FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U

Includes/Requires:

Includes:

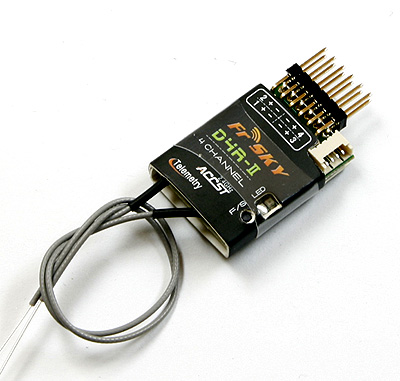

1 x D4R-II two-way receiver
