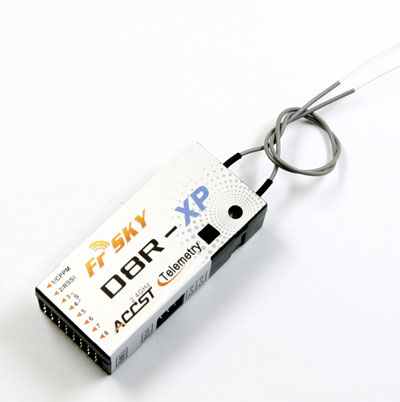

FrSky 2.4G 8-channel Two Way Communication Receiver D8R-XP
    SKU D8R-XP
    Brand FrSky
    Manual Manual 1
    Added 2012/05/16
    Updated 2013/04/10

    Tags: FrSky,  2.4G,  2.4GHZ,  two-way,  2-way,  telemetry

    Features:

    Features
    1) Two external analog telemetry ports (A1&A2) and one digital data-stream port (Rx);
    2) RSSI (PWM) and CPPM output - If CH3 and CH4 are connected by a jumper, CH1 will output CPPM for CH1~CH8,
    and CH2 will output RSSI (PWM);
    3) When side port pins of A1 and X are connected by the jumper, A1 will change from external analog telemetry port to
    internal built-in battery voltage sensor;
    4) Firmware upgradeable;
    5) Two switchable PPM modes - FS mode and HS mode;
    6) Alarm warning on low voltage, poor reception, etc.

    Specifications:

    1.1 Compatibility
    Compatible with FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U
    1.2 Specifications
    Dimension: 55*25*14mm
    Weight: 12.4g
    Operating Voltage Range: 3.5V-10.0V
    Operating Current: 100mA
    Operating Range: full range (>1.5km)
    Servo Frame Rate: 18ms (FS – Normal Speed Mode)
    9ms (HS – High Speed Mode)

    Includes/Requires:

    Includes:
    1 x receiver D8R-XP
