    Corona 4.5kg / 0.09sec / 32g Metal Gear High Voltage Digital Servo DS-329HV
    0D0105010204
    Price(USD):$7.61     In stock
    Price(USD):Member Price:$7.61     In stock Sign in for member price
    Price(USD):Buy:$7.61     In stock
    Add To Cart     Add To Wish List
    SKU DS329HV
    SKUBrand DS329HVCORONA
    SKUAdded DS329HV2020/10/09
    SKUUpdated DS329HV2020/10/09
    SKU
    SKU

    Tags: Corona_4.5kg_0.09sec_32g_Metal_Gear_High_Voltage_Digital_Servo_DS-329HV

    Specifications:

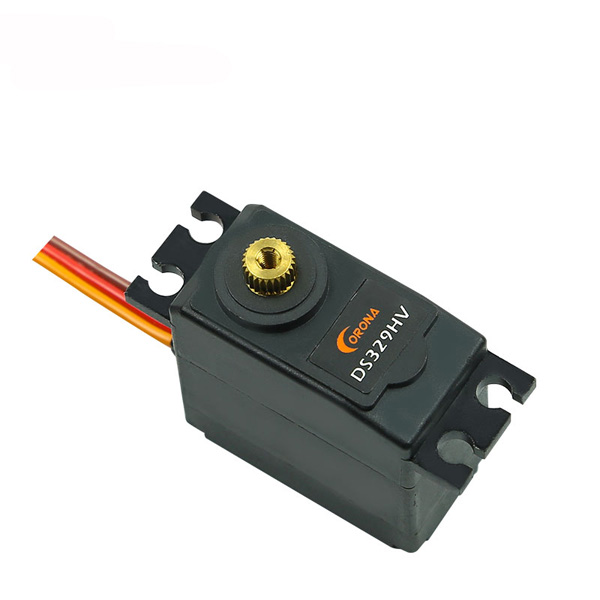

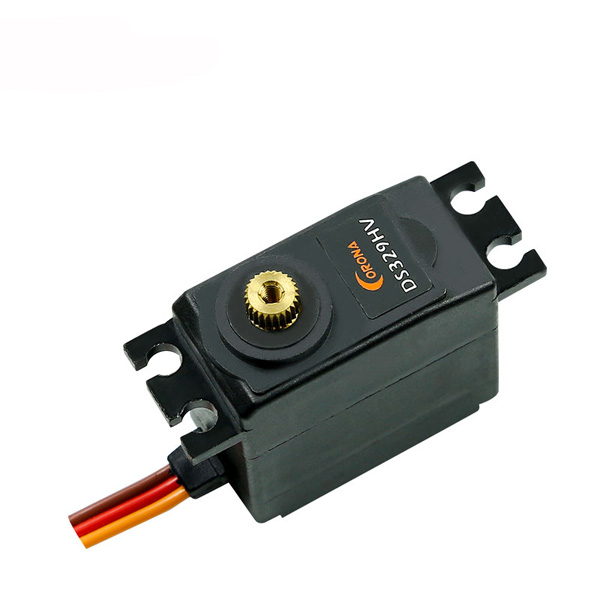

    Corona 4.5kg / 0.09sec / 32g Metal Gear High Voltage Digital Servo DS-329HV


    Item： DS329HV
    Size： 32.5x17x34.5mm(1.28"x0.67"x1.36")
    Weight： 32g
    Voltage： 6.0V / 7.4V
    Current： 320mA / 420mA
    Operating Speed： 0.10sec.60º/ 0.09sec.60º
    Stall Torque： 4.0kg.cm / 4.5kg.cm
    Dead Band： ≤3uSec
    Operating Travel： 40º/one side pulse traveling 400us
    Potentiometer 5 slider/Indirect Drive
    Ball bearing MR106
    Gear Metal
    Connector wire length 300mm
    Operating Temperature Range -20 ℃ to +60℃

    Includes/Requires:

    Includes:

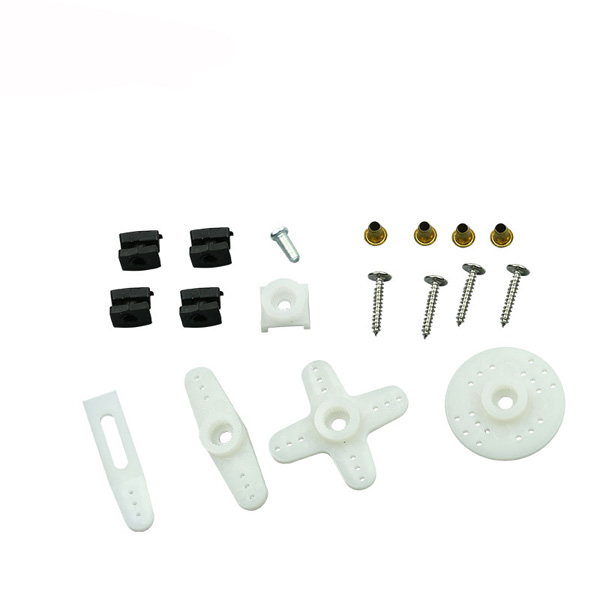

    1 x servo with servo horns
