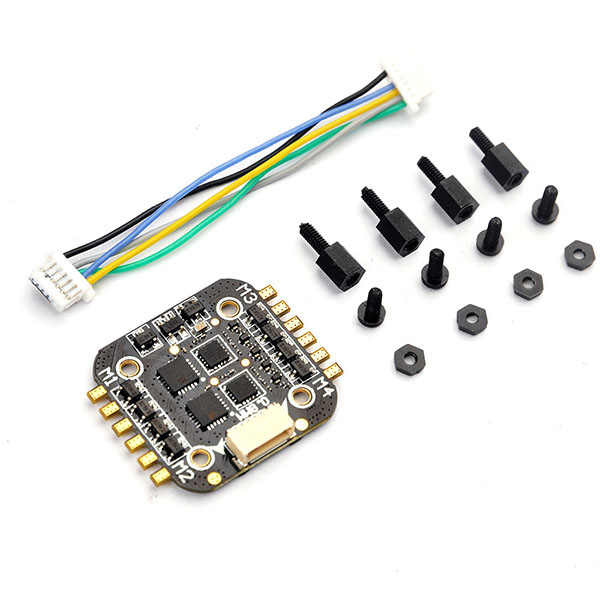

Super_S F3 Flight Control W/ OSD + Super_S BS06D 4-in-1 Speed Control Assembly
    SKU SUPF3FT
    Added 2017/06/10
    Updated 2017/06/10

    Tags: Super_S  F3  Flight  Control  W  OSD  +  Super_S  BS06D  4-in-1  Speed  Control  Assembly

    Features:

    Features:
    -Support programmable LED Sprit (turn off transponder before using)
    -Support BLheli/BLHELI_S suite Pass-through ready
    -Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
    -Default Dshot600
    -Built-in voltage detection, alarm
    -Built-in Betaflight-OSD
    -Buzzer solder pin
    -LED_STRIP connector
    Package included:

    Specifications:

    Super_S F3 Flight Control W/ OSD + Super_S BS06D 4-in-1 Speed Control Assembly

    Flight controller
    Item name: Super_s F3 flight controller board
    Size: 20*20mm
    Mounting hole: 16*16mm
    Diameter: 2mm
    Weight: 1.9g
    Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
    Sensor: MPU-6000 ( connected by SPI)
    Firmware version: betaflight_3.1.0_OMNIBUS
    Built-in ESC: 5V/0.5A
    Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
    Power supply: 2S lipo battery ( 6.5V-8.4V)
    Suitable for 60mm-80mm mini brushless FPV Quadcopter frame
    ESCprefix = "o" ns = "urn:schemas-microsoft-com:office:office"
    Item name: Super_s 4 In 1 6A BLHeli_S ESC
    Size: 25x29mm (includes solder pad)
    Mounting holes: 16x16mm, φ2mm
    Weight: 3g
    Input voltage: 2S lipo
    Con. Current: 6A
    Peak Current: 10A (5S)
    Firmware: BLHELI_S
    Processor: SILABS EFM8BB21F16G
    BEC: NO
    Driver: 3 in 1 MOS
    Supports Dshot Oneshot multishot






    Includes/Requires:

    Includes:
    1 x Super_S 4 In 1 6A BLHeli_S ESC
    1 x Cable
    4 x M2*5+5 nylon columnd
    4 x M2 Screw
    4 x M2 Nut
