Tags: SP  Racing  Mini  Super_S  F3  Flight  Control  W  OSD,  5V  BEC

Features:

-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Support the newest DSHOT ESC
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD
-Buzzer solder pin
-LED_STRIP connector
-BB ring

Specifications:

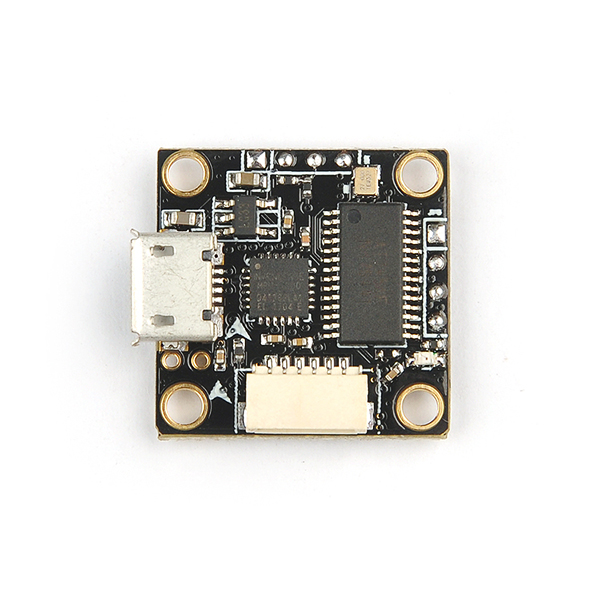

SP Racing F3 6DOF Flight Control board  W/ Integrated OSD

Item name: Super_s F3 flight controller board

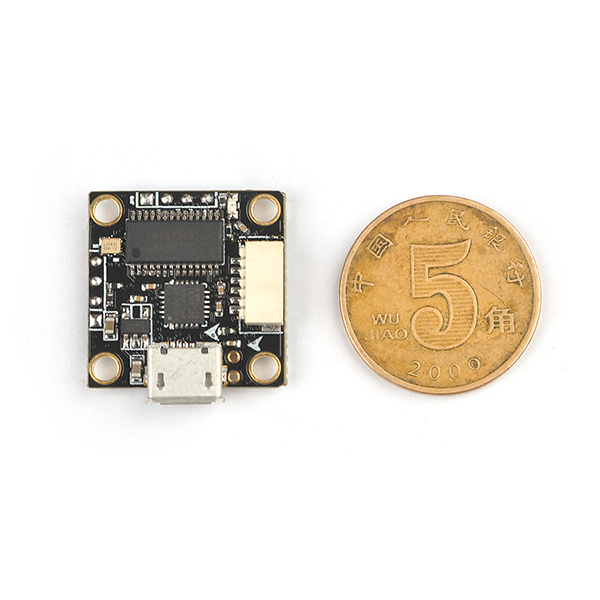

Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 1.9g

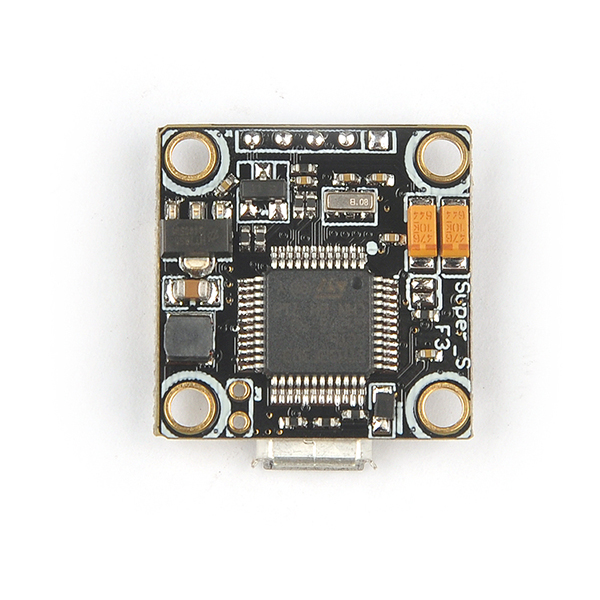

Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.0_OMNIBUS
Built-in ESC: 5V/0.5A
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 2S lipo battery ( 6.5V-8.4V)
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame


Notes:
-DSM and SBUS receiver input, please configure RX3(UART3) as input interface.
-DSM receiver power from 3.3V.
-SBUS and PPM receiver power from 5V.

Includes/Requires:

Includes:
1x  flight controller
