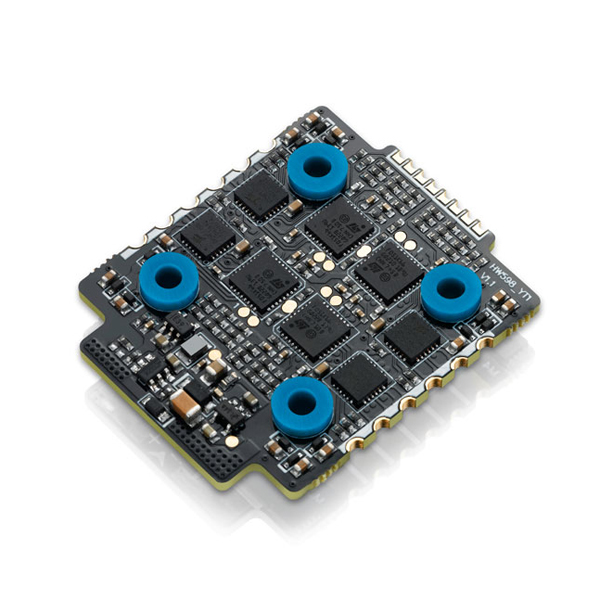

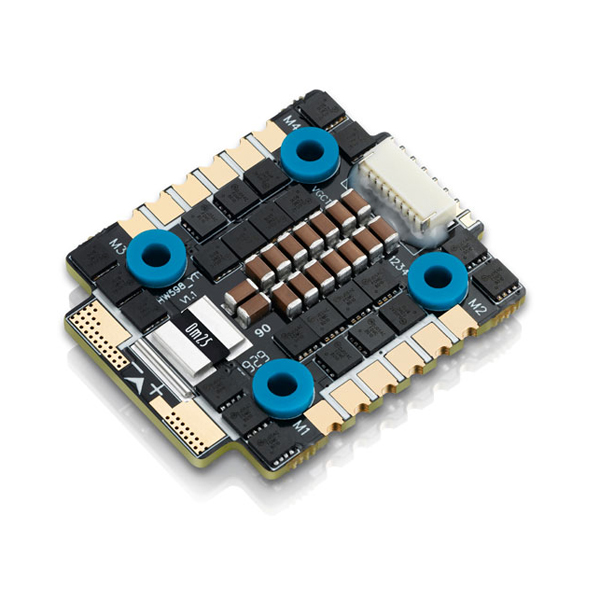

HOBBYWING XRotor Micro 40A(20x20) 6S 4in1 BLHeli32 DShot1200 Speed Controller ESC for Racing Drone
    SKU XR40A-20
    Brand HOBBYWING
    Added 2020/05/22
    Updated 2020/05/22

    Tags: HOBBYWING_XRotor_Micro_40A_20x20_6S_4in1_BLHeli32_DShot1200_Speed_Controller_ESC_for_Racing_Drone

    Features:


    Specifications:

    HOBBYWING XRotor Micro 40A(20x20) 6S 4in1 BLHeli32 DShot1200 Speed Controller ESC for Racing Drone


    Product Name



    XRotor Micro 40A (20x20) BLHeli_32 4in1 DShot1200

    Product Number



    30902045

    Specifications

    Cont./Peak Current

    40Ax4/ 60Ax4

     Input Voltage

    3-6S Lipo

    BEC output

    NO

    Wires & Connectors

    Input Wires

    Red-14AWG-100mm/ Black-14AWG-100mm

    Output Wires

    No wires but solder tabs

    Input Connectors

    XT60 plug enclosed with package.

    Output Connectors

    No

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Features

    Firmware

    Hobbywing_XRotor_BLHeli-32 Version

    ESC Programming

    BLHeliSuite32

    Stick Programming

    Supported

    DEO

    Supported

    Throttle Range Calibration

    Supported

    Oneshot125 Mode

    Supported

    Oneshot42 Mode

    Supported

    MultiShot Mode

    Supported

    DShot150/300/600/1200

    Supported

    Timing

    Supported

    Motor Rotation

    Supported

    Size & Weight

    Size

    40x33x5mm

    Weight

    12g

    Applications



    100-300mm FPVs

    Includes/Requires:

    Includes:
    1 x ESC
