SKU | FV2BEC |
---|---|
Added | 2014/01/14 |
Updated | 2017/10/11 |
Features:
Special features:- Integrated with 2 BEC outputs, one is fixed at 12V output for FPV devices like A/V transmitter, camera etc., another BEC is 3-20V adjustable for servos etc, both BEC can work continuously at 2A. (Higher than 2A may burn the chips)
Specifications:

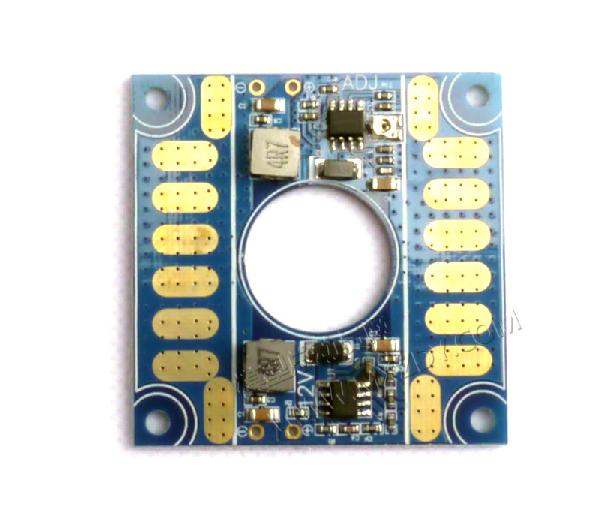

100A Multi-rotor Power Distribution Hub W/ 2 x BEC outputs
Max currency: 100A
Adjustable BEC ouput: 3-20V 2A
Fixed BEC output: 12V/ 2A
Power input: max 6S
Dimension: 52 x 52mm
Includes/Requires:
Includes:1 x wiring hub
