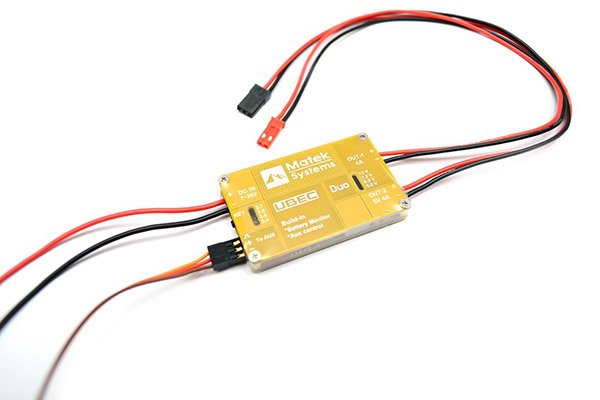

Matek Dual Output BEC 4A/ 5V, 4A 5-12V (With Built-in Aux control switch)
    SKU U4A-2P
    Manual Manual 1
    Added 2016/08/03
    Updated 2016/08/03

    Tags: Matek  Dual  Output  BEC  4A  5V,  4A  5-12V  (With  Built-in  Aux  control  switch)

    Specifications:

    Matek Multi-rotor Power Distribution Board W/ 5V/ 12V outputs, Current Sensor, OSD

    Input: 7-26V DC (2-6S Lipo)
    BEC-1:  5V, 6V, 7.2V, 12V (adjustable), 0-4A, max. 6A, built-in Aux control switch (you can turn the BEC output on or off using the Aux channel of your transmitter)
    BEC-2: 5V/ 0-4A, max 6A
    Efficiency: up to 95%
    Standby current: 10mA
    Lipo voltage alarm setting: 3.4V, 3.5V, 3.6V, 3.7V/ cell & OFF
    Input cable 20cm (20AWG silicon wire), output cable 30cm (2 pairs, silicon 22AWG)
    Dimension: 58 x 36 x 8mm
    Weight: 32g

    * This is a step-down regulator, the input should be 4S LiPo at least to ensure stable output of 12V.

    Includes/Requires:

    Includes:
    1 x external BEC module
