Features:
Specially designed for brushless gimbal, suit for gimbals for Sony NEX-5 camera or the like.Specifications:

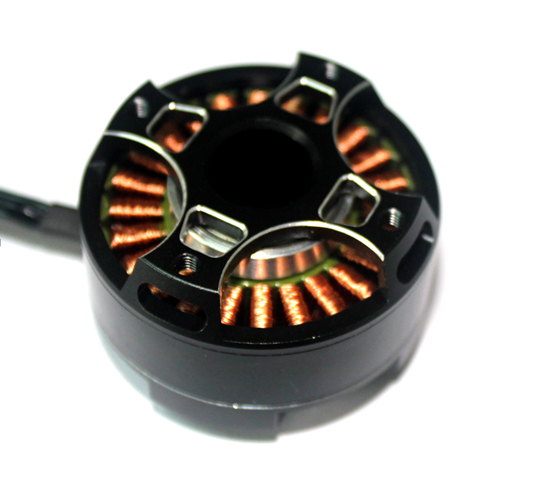

LD-Power 4008 Gimbal Brushless Motor HS4008GM
Outer diameter: 45 x 27mm
Stator Dimension: 40 x 8mm
KV: 56
Resistance: 0.11 ohm
No load current: 0.04A @ 14.8V
Shaft: 12.5mm hollow
Weight: 96.5g
Mounting holes: 35 / 35mm center to center, 3mm bolt thread ( same for both sides)
Load weight: 400-800g cameras like Nex 5N size.
* Price is for one motor only.
Includes/Requires:
Includes:1 x gimbal brushless motor
