Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis
    Electronic Speed Controller (ESC)

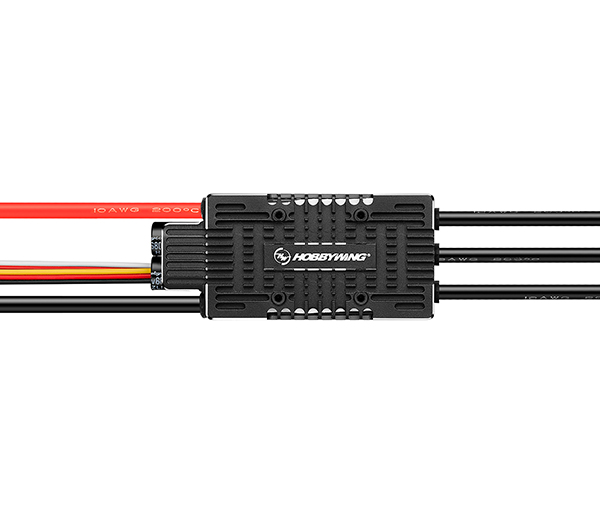

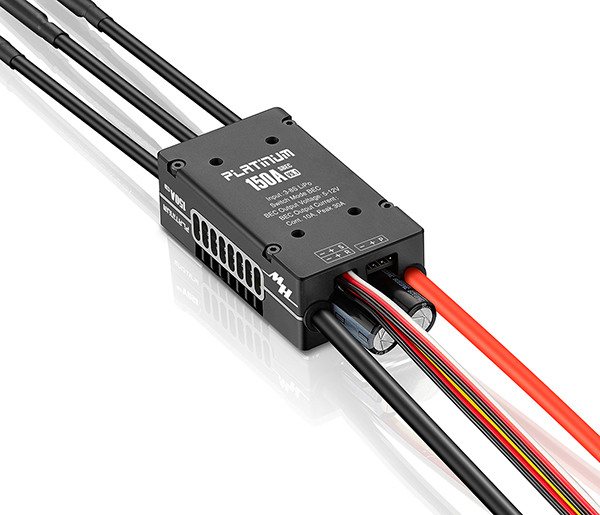

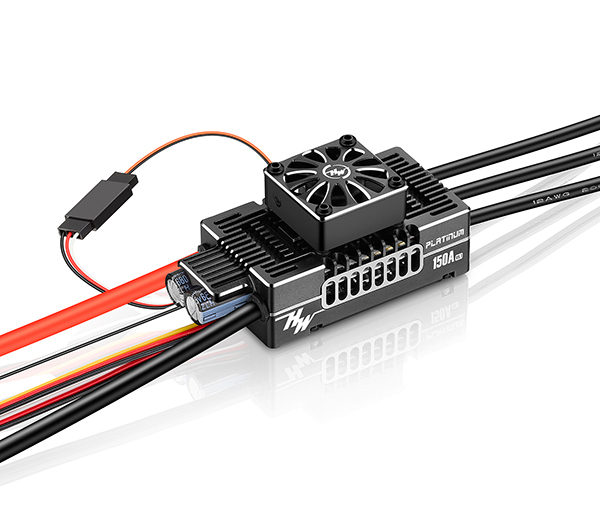

    Hobbywing Platinum 150A Speed Control V5.1
    SKU PLT150AV51
    Brand HOBBYWING
    Added 2024/08/06
    Updated 2024/08/06

    Tags: Hobbywing_Platinum_150A_Speed_Control_V5.1

    Features:


    Specifications:

    Hobbywing Platinum 150A Speed Control V5.1


    Product Number
    30203501
    Type
    Brushed/BrushlessBL
    High Voltage/RegularRegular
    Specifications
    Cont./Peak Current150A/180A
    Input Voltage3-8S Lipo
    BEC OutputSwitch Mode:5-12V & Cont. 10A，Peak 30A
    Wires & Connectors
    Input WiresRed-10AWG-150mm*1/Black-10AWG-150mm*1
    Output WiresBlack-12AWG-100mm*3
    Input ConnectorsNo
    Output Connecotors4.0mm Gold Connectors (Female)
    ESC Programing via
    TransmitterNot Support
    LED Program CardNot Support
    LED Program BoxNot Support
    LCD Program BoxSupported
    OTA ProgrammerSupported
    Program PortSeparate Program Port
    Firmware
    Firmware UpgradeSupported
    Telemetry Function
    Mikado VBar；Futaba S.Bus2；etc.
    Size & Weight
    Size83.2*37.1*22.5mm (without fan)
    Weight150.4g (with wires, no fan)
    Application scope
    520-580 class electric helicopter (main blade length 520-580mm),or fixed-wing

    Includes/Requires:

    Includes:
    1 x  Hobbywing Platinum 150A Speed Control V5.1 ESC
