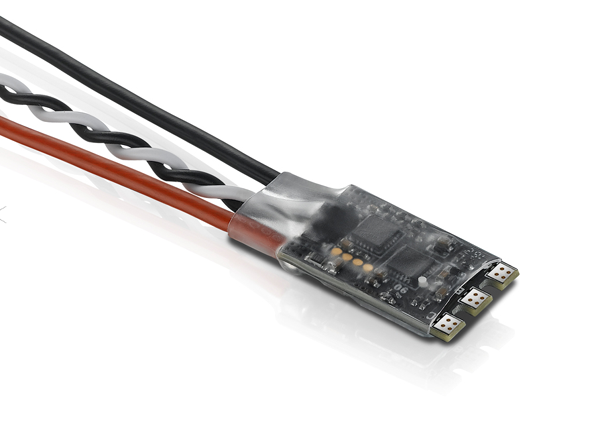

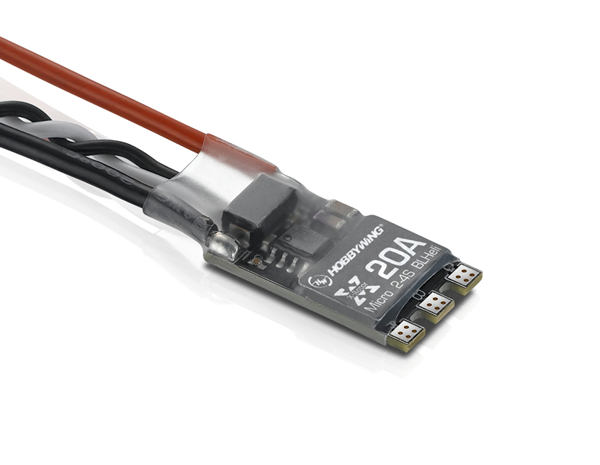

HOBBYWING XRotor Micro BLHeli 20A 2-4S Speed Control for Multicopters - BLHeli Edition
    SKU XRT20A-B
    Brand HOBBYWING
    Added 2016/07/28
    Updated 2016/07/28

    Tags: HOBBYWING  XRotor  Micro  BEHeli  Speed  Control  for  Multicopters

    Features:

     Features

    Super Small & Light

    ESCs with incredible small size and light weight are specially designed for competition FPV drones.

    Quality Components
    The use of F396 48MHz MCU, imported MOSFETs (Toshiba MOSFETs for 20A &35A ESCs, Fairchild MOSFETs for 30A ESCs) and ceramic capacitors, 3-in-1 drive ICs, 3-ounce copper, 4 layers of PCBs and other quality components guarantees less heat, higher efficiency and rapider response.





    BLHeli Firmware Ready
    Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs simultaneously after
    connecting their flight controller to the BLHeliSuite software if the flight controller uses the CleanFlight firmware.



    Damped Light Mode & OneShot125 Mode Supported

    Damped light mode improves the motor retardation and allows users to brake the FPV drones more efficiently. Active-freewheeling technology improves driving efficiency, flight time and heat dissipation. The ESCs support OneShot125 high speed throttle signal and regular throttle signal (within 500Hz) modes.


    Twisted-Pair Signal Cable Reduces Interference
    The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes the flight much more stable and reliable.

    Specifications:

    HOBBYWING XRotor Micro 20A 3-4S Speed Control for Multicopters XRotor-20A Micro

    Specifications

    Product Name



    XRotor micro 20A BLHeli

    XRotor micro 30A BLHeli

    XRotor micro 35A BLHeli

    Product Number



    30901066

    30901071

    30901070

    Specifications

    Cont./Peak Current

    20A/30A

    30A/40A

    35A/50A

    LiPo Cells

    2-4S LiPo

    2-4S LiPo

    3-6S LiPo

    BEC Output

    No

    No

    No

    Wires & Connectors

    Input Wires

    Red-20AWG-100mm*1;
    Black-20AWG-100mm*1

    Red-18AWG-100mm*1;
    Black-18AWG-100mm*2

    Red-18AWG-100mm*1;
    Black-18AWG-100mm*3

    Output Wires

    No wires but solder tabs

    No wires but solder tabs

    No wires but solder tabs

    Input Connectors

    No

    No

    No

    Output Connectors

    No

    No

    No

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Features

    Throttle Range Calibration

    Supported

    Supported

    Supported

    Stick Programming

    Stick Programming/BLHeliSuite

    Stick Programming/BLHeliSuite

    Stick Programming/BLHeliSuite

    DEO

    Not Supported

    Not Supported

    Not Supported

    OneShot Mode

    Supported

    Supported

    Supported

    Timing

    Supported

    Supported

    Supported

    Light Color

    Not Supported

    Not Supported

    Not Supported

    Motor Rotation

    Supported

    Supported

    Supported

    Size & Weight

    Size

    24.0x13.9x5.5mm

    24.0x13.9x5.5mm

    36.5x16.7x5.5mm

    Weight

    7g

    7g

    10g

    Applications



    FPVs with 130-280mm Diagonal Wheelbase

    FPVs with 130-280mm Diagonal Wheelbase

    FPVs with 150-330mm Diagonal Wheelbase


    Includes/Requires:

    Includes:
    1 x ESC
