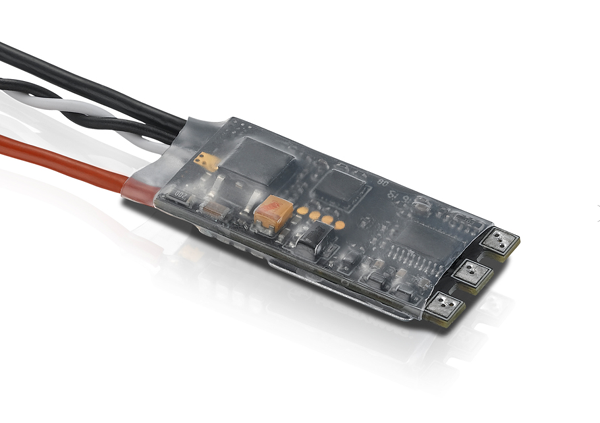

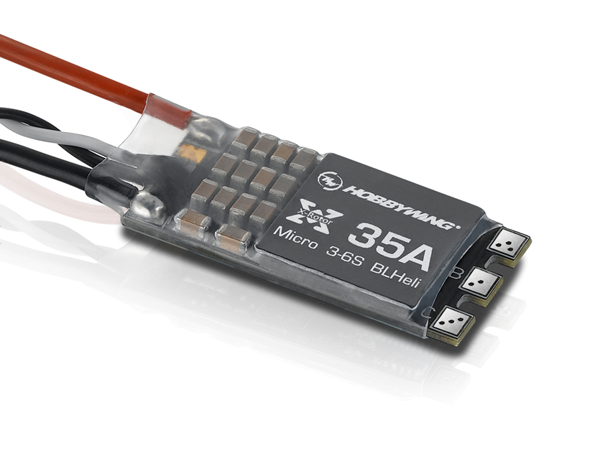

HOBBYWING XRotor Micro 35A 6S Speed Control for Multicopters XRotor-35A Micro
    SKU XRT35A-M
    Brand HOBBYWING
    Added 2016/07/09
    Updated 2016/07/09

    Tags: HOBBYWING  XRotor  Micro  Speed  Control  for  Multicopters  X-Rotor  Micro

    Features:

     Features

    Super Small & Light

    ESCs with incredible small size and light weight are specially designed for competition FPV drones.

    Quality Components
    The use of F396 48MHz MCU, imported MOSFETs (Toshiba MOSFETs for 20A &35A ESCs, Fairchild MOSFETs for 30A ESCs) and ceramic capacitors, 3-in-1 drive ICs, 3-ounce copper, 4 layers of PCBs and other quality components guarantees less heat, higher efficiency and rapider response.






    Damped Light Mode & OneShot125 Mode Supported
    Damped light mode improves the motor retardation and allows users to brake the FPV drones more efficiently. Active-freewheeling technology improves driving efficiency, flight time and heat dissipation. The ESCs support OneShot125 high speed throttle signal and regular throttle signal (within 500Hz) modes.


    Twisted-Pair Signal Cable Reduces Interference
    The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes the flight much more stable and reliable.

    Specifications:

    HOBBYWING XRotor Micro 35A 6S Speed Control for Multicopters XRotor-35A Micro

    Product:  XRotor 35A Micro
    Continuous/ Peak current: 35A/ 50A
    Cell number: 3-6S Lipo
    BEC output: No
    Wire:  power  input 18AWG, 100mm  (wire length is the overall length including the portion soldered on the PCB)
    Output wires: No
    Power input connector: No
    Dimension:36.5x16.7x5.5mm
    Weight: 10g
    Typical application: 130 - 280 class quadcopter


    Function features:
    Throttle range calibration:  supported
    Programming method:  via transmitter
    DEO: Not supported
    Oneshot throttle mode: Supported
    Timing setting: yes
    motor rotating direction reverse: yes

    Includes/Requires:

    Includes:
    1 x ESC
