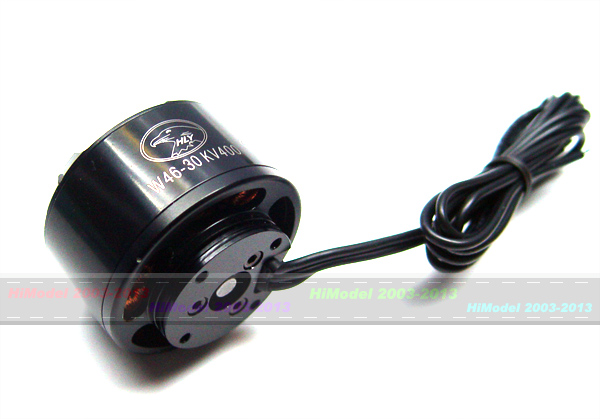

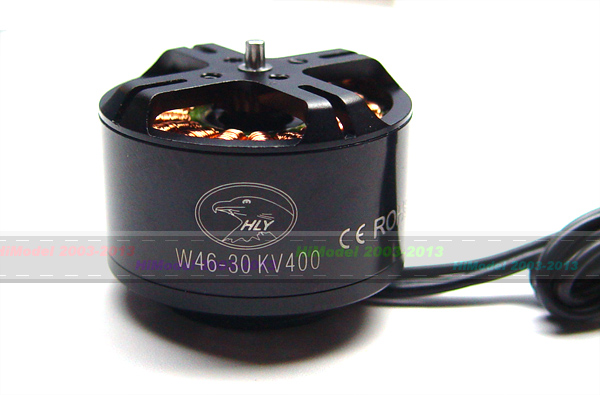

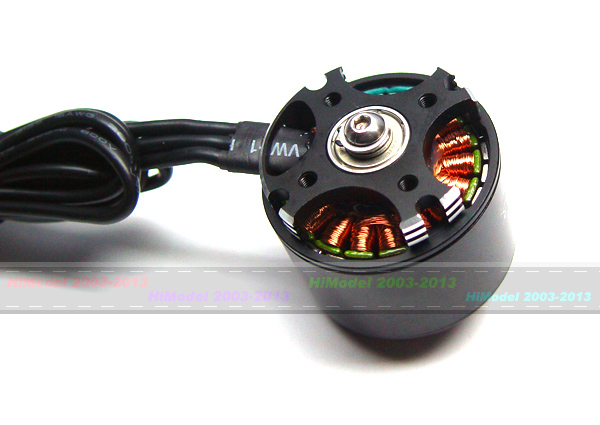

HL W46-30 400KV Outrunner Brushless Disk Type Motor for 600-800 Class Multi-rotor Aircraft (for 6S)
    040609060106
    Price(USD):$44.79     In stock
    Price(USD):Member Price:$44.79     In stock Sign in for member price
    Price(USD):Buy:$44.79     In stock
    Add To Cart     Add To Wish List
    SKU 4630-400
    SKUBrand 4630-400HL
    SKUAdded 4630-4002013/05/22
    SKUUpdated 4630-4002013/10/22
    SKU
    SKU

    Tags: multi-rotor,  brushless  motor

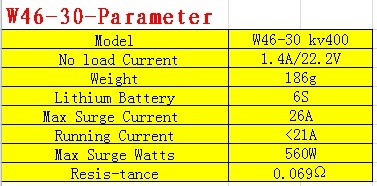

    Specifications:

    Model:  W46-30 400KV
    Idol current: 1.4A at 22.2V
    Net weight: 186g (excluding prop adaptor)
    Mounting hole spacing: 25mm/ 25mm (cross side)
    Max cell number supported: 6S Lipo
    Wire length: 50CM
    Mounting hole spacing:  25mm/25mm (cross side)
    Max current: 26A
    Working current: <21A
    Max power:560W
    Internal resistance: 0.069Ω

















    Includes/Requires:

    Includes:
    1 x motor
    1 x prop adaptor
    1 x M6 lock nut
    8 x  M3x5mm screws
    2 x M3x10 screws
    1 x prop holding down disk

    *Connectors are not included
