EV-Peak AC 110/220V Input 1-6S 4x 100W Balance Charger CQ3 | Latest firmware, support high voltage cell
    SKU EV-CQ3
    Brand EV-PEAK
    Added 2015/08/18
    Updated 2016/05/09

    Tags: EV-Peak_AC_110_220V_Input_1-6S_4x_100W_Balance_Charger_CQ3

    Features:

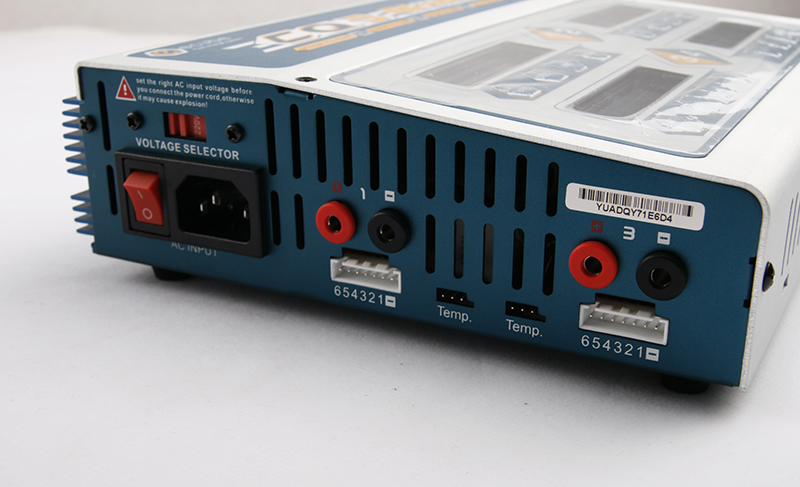

    THIS VERSION  SUPPORTS BOTH 110V & 220V INPUT USING A SWITCH.

    MAKE SURE THE 110V/220V INPUT SWITCH IS IN CORRECT POSITION BEFORE PLUG IT INTO YOUR AC POWER SUPPLY.

    Specifications:

    EV-Peak AC 110/220V Input 1-6S  4x 100W Balance Charger CQ3


    AC Input voltage range 220V/110V switchable
    DC Input voltage range DC 11.0V~18.0V
    Charge current range 0.1A~10A
    Discharge current range 0.1A~5.0A
    Charge power limited  100Wx4
    Discharge power limited 10Wx4
    Energy transfer discharge: max 400W
    Balance tolerance ±0.01V
    Balance current: max 400mA
    NiCd/NiMH battery cell count 1~16cells
    Lithium battery types Li-Po, Li-ion,Li-Fe
    Lithium battery cell count 1-6series
    Pb battery voltage 2V~20V
    Dimension: 220 x 240 x 68mm

    *Wall plug type: 2-round pin (EU type) . Plug type is not optional, please use wall plug adaptor in case your country using a different wall plug.
