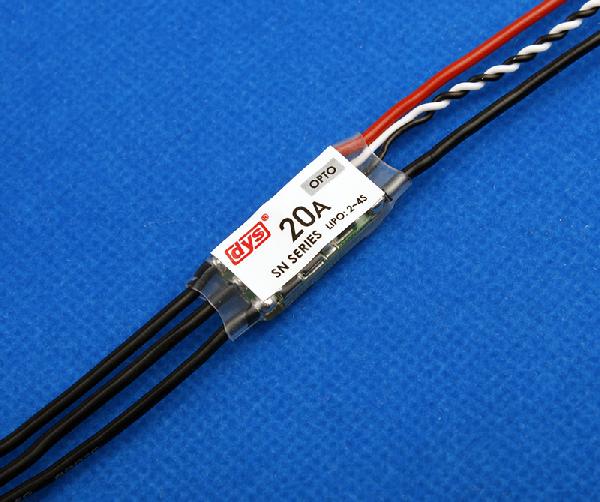

DYS SN Series 20A 2-4S SimonK Speed Controller for Multicopter SN20A (BLHeli compatible)
    SKU SN-20A
    Brand DYS
    Added 2015/07/16
    Updated 2015/07/16

    Tags: DYS  SinonK  Simon  K  firmware  multicopter  ESC  speed  controll  BLHeli

    Features:

    Feature:

    ◆ Specially for Multi-copter, throttle respond fast;

    ◆ Suit for throttle, which can compatible well with motor;

    ◆ Throttle signal is twisted pair cable, reduce the crosstalk while the signal transfer by the copper wire and flight more stable;

    ◆ The maximum refresh frequency up to 500Hz throttle signal, compatible with all flight controls;

    ◆ Use new process ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;

    ◆ Minaturization design, SN16/20A with high performance capacitor fliter on the board, weight reduce to 2g, also already thicken the PCB copper specially and low heat for small aircraft.


    Specifications:

    DYS SN Series 20A 2-4S SimonK  Speed Controller for Multicopter SN20A (BLHeli compatible)

     Running current:  20A
     Input Voltage: 2-4S Lixx
     BEC: No
     Size: 23mm (L) x 12mm (W) x 4.5mm (H).
     Weight: 5.7g (including wires)
    Signal frequency:20-500Hz
    Outout PWM frequency:18KHz
    Firmware compatibility: Compatible with SimonK & BLHeli

    Includes/Requires:

    Includes:
    1 x ESC
